Industrial Power. Exceptional Precision.
High-power 1064nm fiber laser for demanding industrial engraving and metal processing.
Adjustable 2–500ns pulse width and 1–4,000kHz frequency for specialized marking results.
Factory-configured high-speed scanning head for accurate, consistent production marking.
Water-cooled scanning system with S&A CW3000 chiller for thermal management.
Built for Demanding Production
Deep Metal Engraving
Deep relief work and detailed dimensional engravings on compatible metals.
Industrial Part Marking
Permanent identification, serial numbers, logos, and production markings.
Specialized MOPA Marking
Color effects on suitable stainless steel and controlled marking on compatible materials.
Thin Metal Cutting
Selected thin-metal cutting applications with appropriate processing conditions.
Machine Specifications
| Laser Source | 350W JPT M7 MOPA Fiber Laser |
|---|---|
| Wavelength | 1064nm |
| Pulse Width | 2–500ns |
| Frequency Range | 1–4,000kHz |
| Scanning Head | Feeltek 2D High-Speed Galvo |
| Cooling | Water-Cooled / S&A CW3000 |
| Working Area | 110 × 110mm to 300 × 300mm |
| Z-Axis | Motorized, 500mm |
| Controller | EZCAD Original |
| Software | EZCAD2 / LightBurn Compatible |
| Warranty | 3 Years |
Power, Precision & Dependable Support.

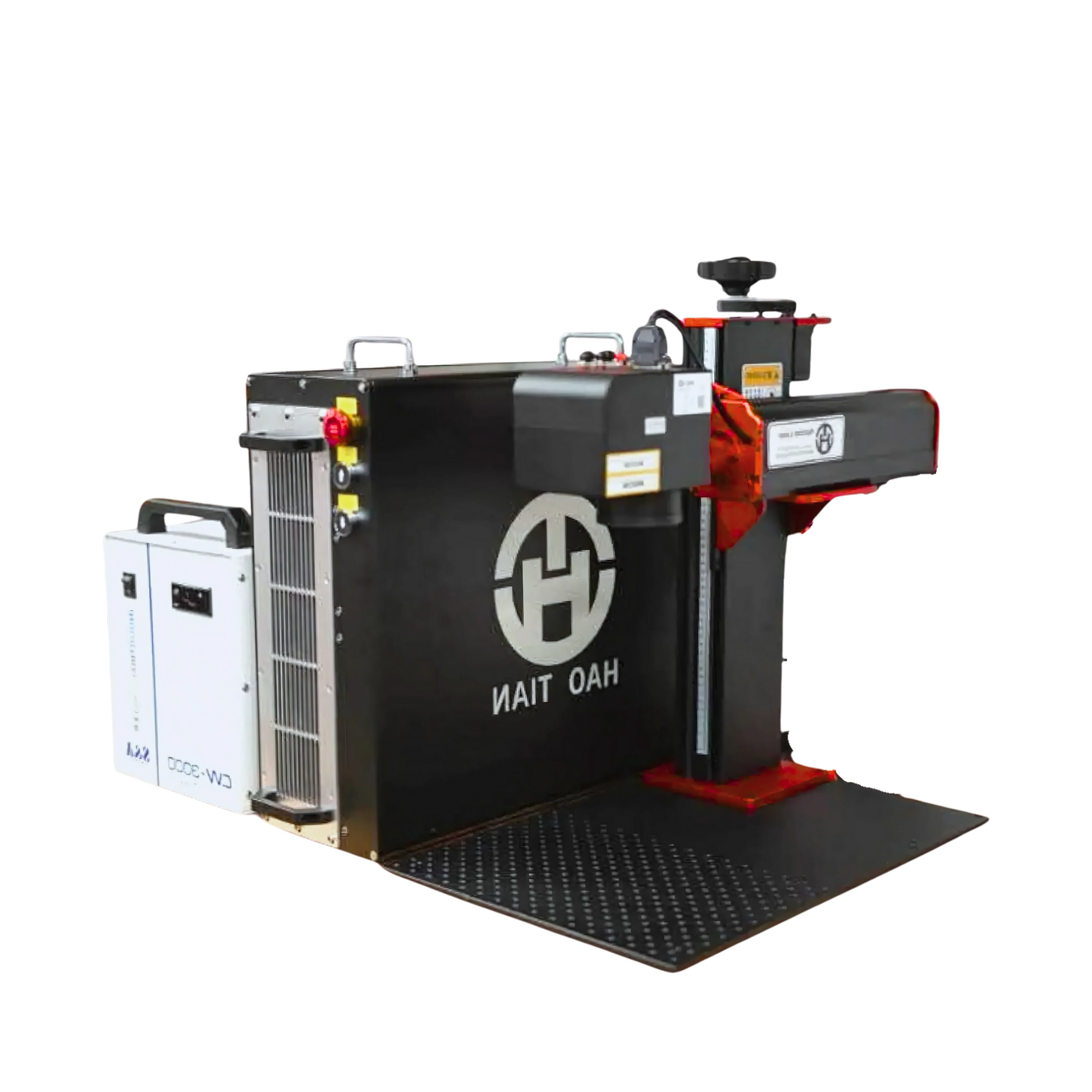

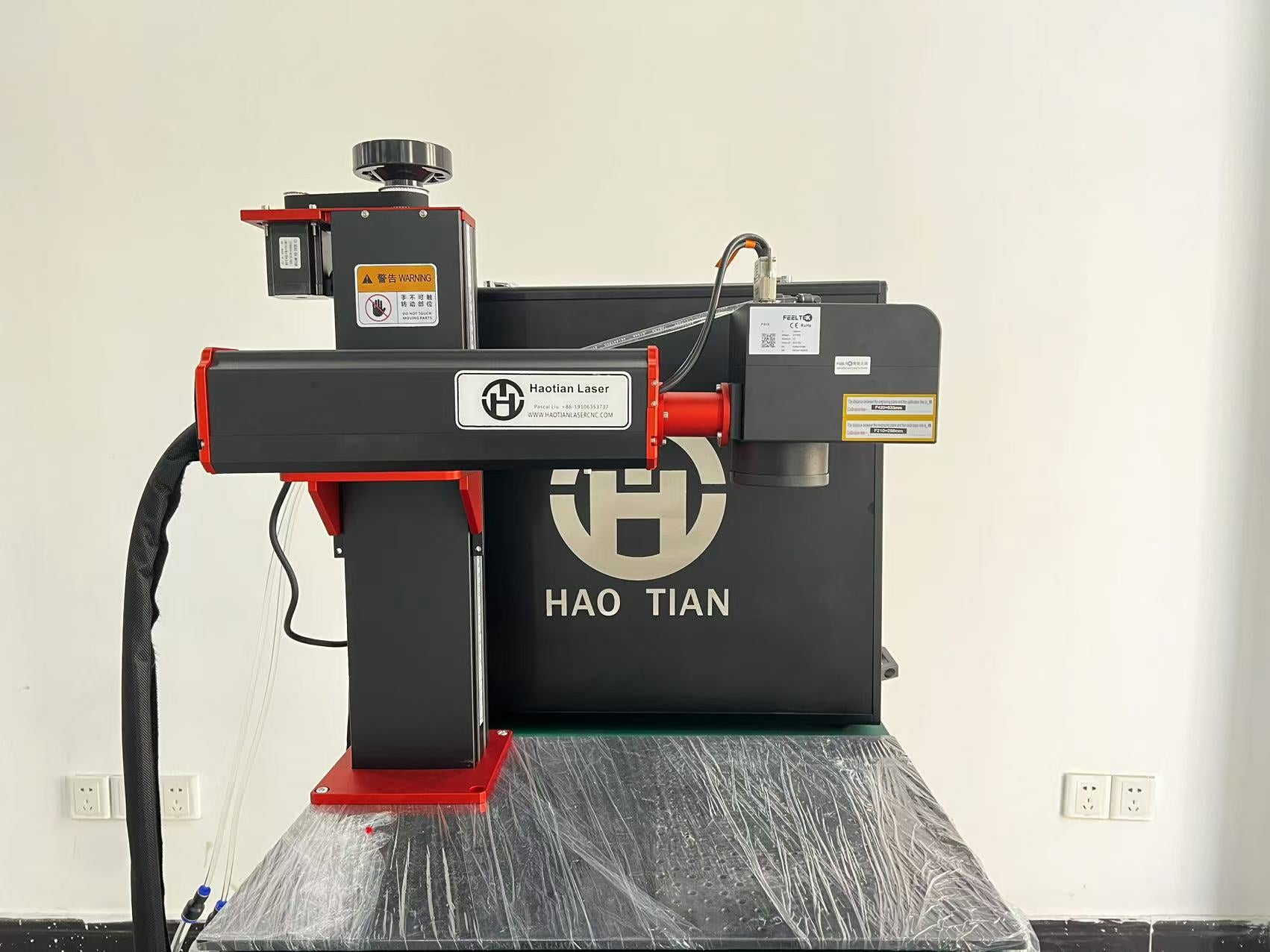

The HaoTian 350W JPT M7 MOPA combines industrial-grade laser power, advanced pulse control, and a Feeltek scanning system for demanding metal engraving and production work.
Backed by HaoTian's U.S.-based team for machine setup, training, and ongoing technical support.
