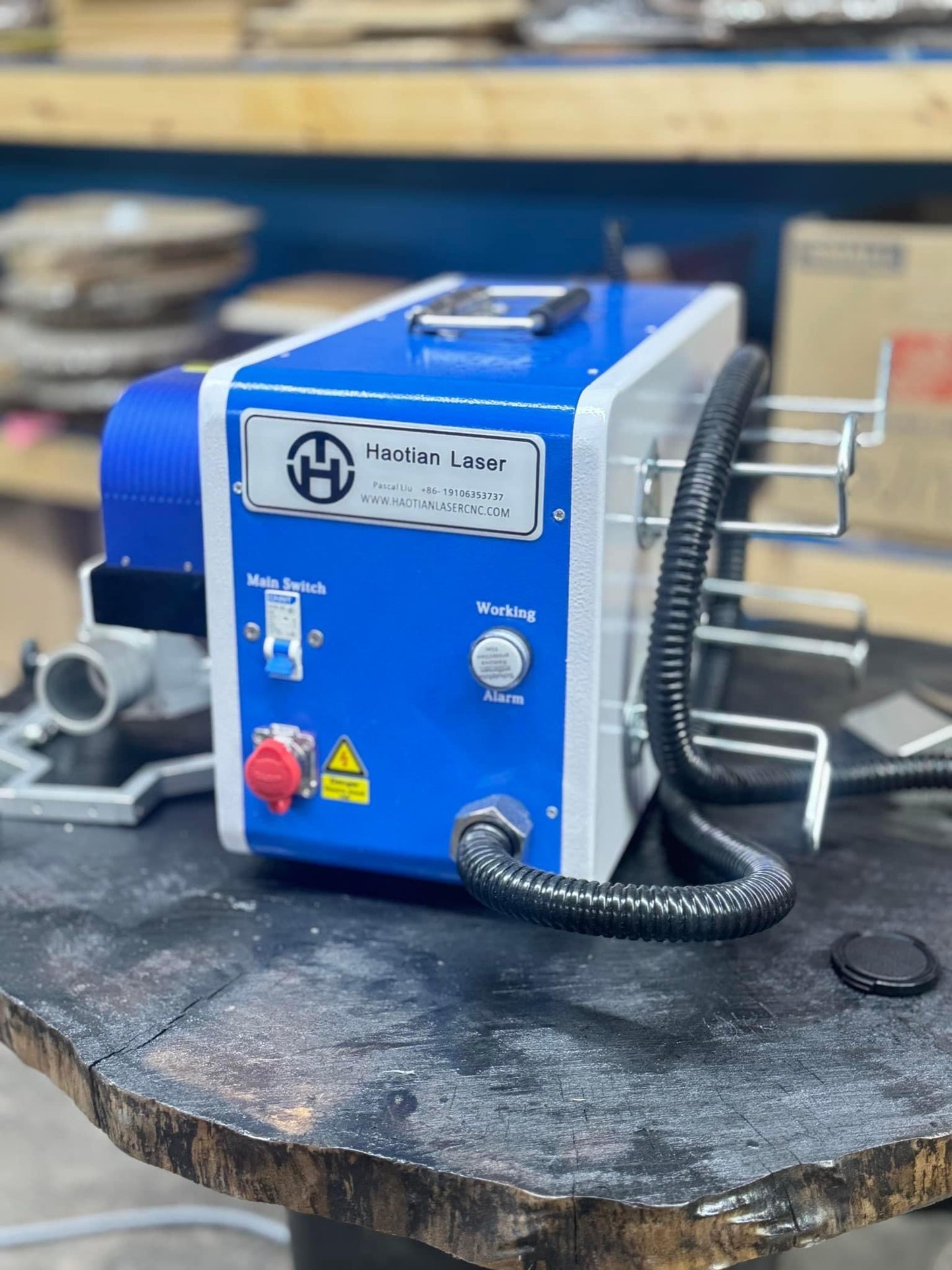

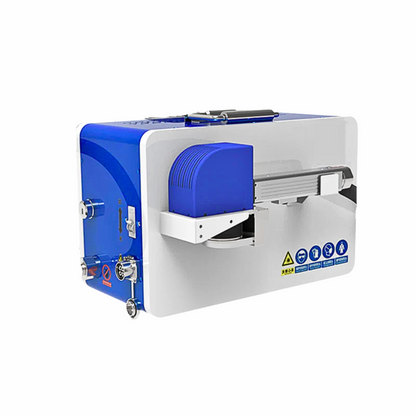

200W handheld Max pulse fiber laser cleaning machine

200W handheld Max pulse fiber laser cleaning machine

$7,900.00 USD
$7,900.00 USD
Sale Sold out

Warranty

2 YEARS

Models List

Free Parts

Main Configuration

  • JPT laser source 200W
  • Top quality cleaning head
  • Water chiller: S&A brand
  • Touch screen control board
  • Super Weiye Control System

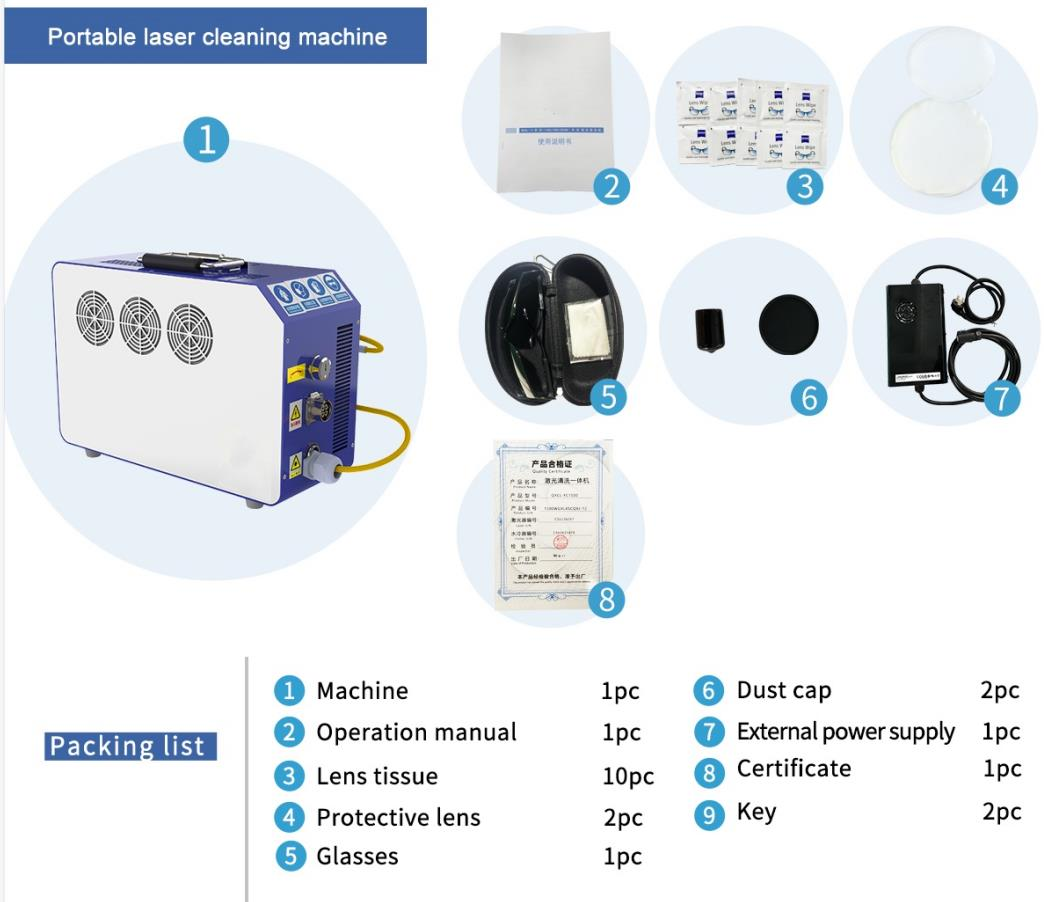

  • Consumable parts: 5 protective glasses, 6 nozzles, 1 gogglel

Detailed Parameters:

Laser power

200w

Pulse energy

1.5mj

Laser power

110V/220V

Laser axis

Dual axis

Cleaning pattern

8 patterns

Power adjustment range

10-100%

Power Consumption

0.8KW

Fiber optical length

3m

Scan width

100X100mm

Focal length

 160mm

Laser Source type

Pulsed fiber laser

Machine Size/Weight

405*200*260mm/17kgs

Package Size/Weight

610*470*650mm/43kgs
