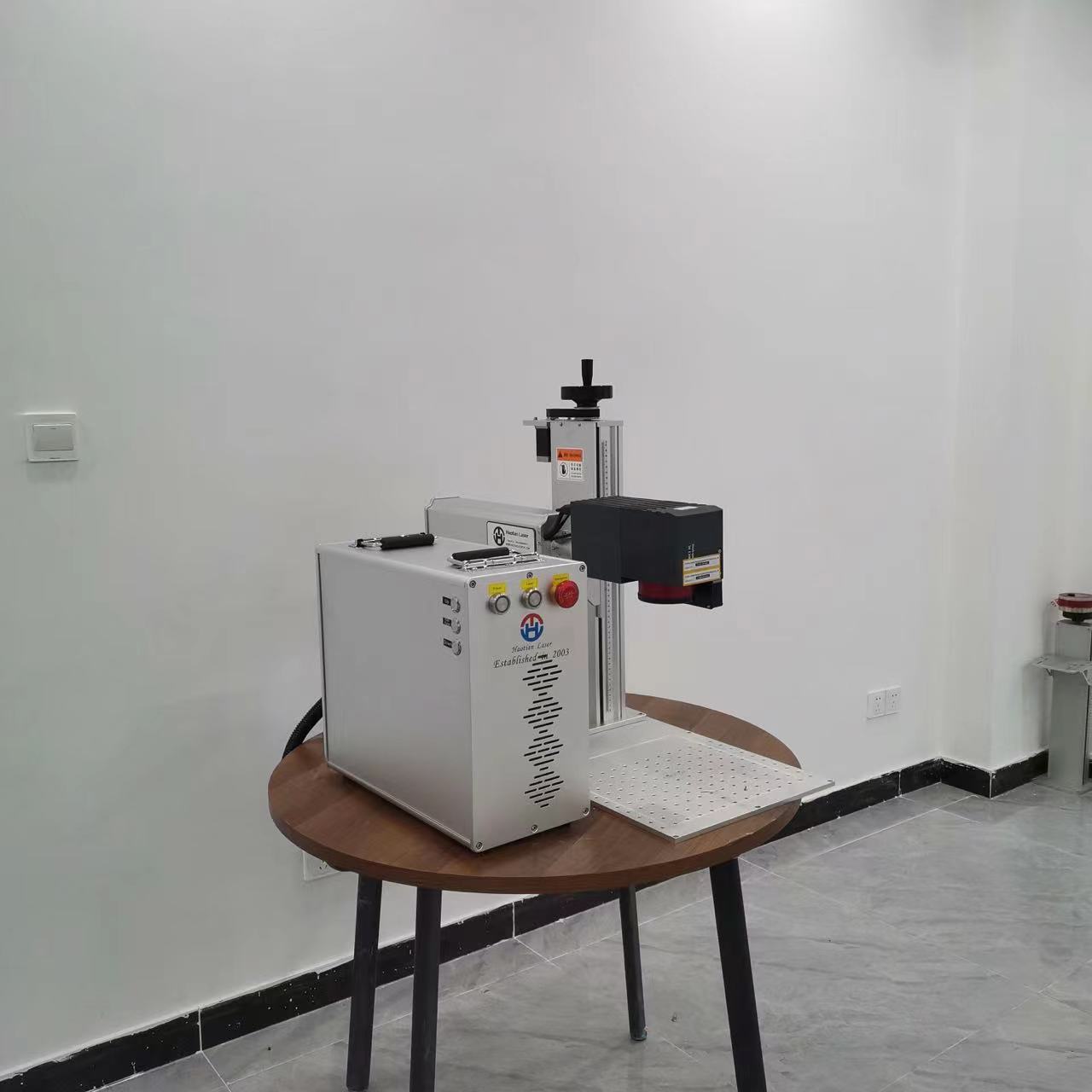

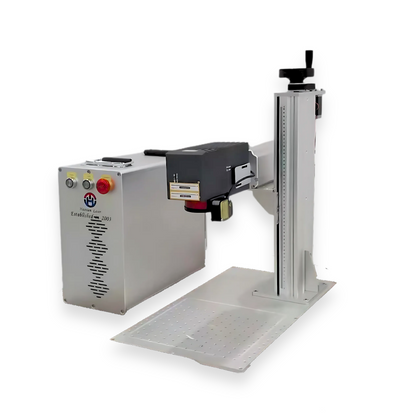

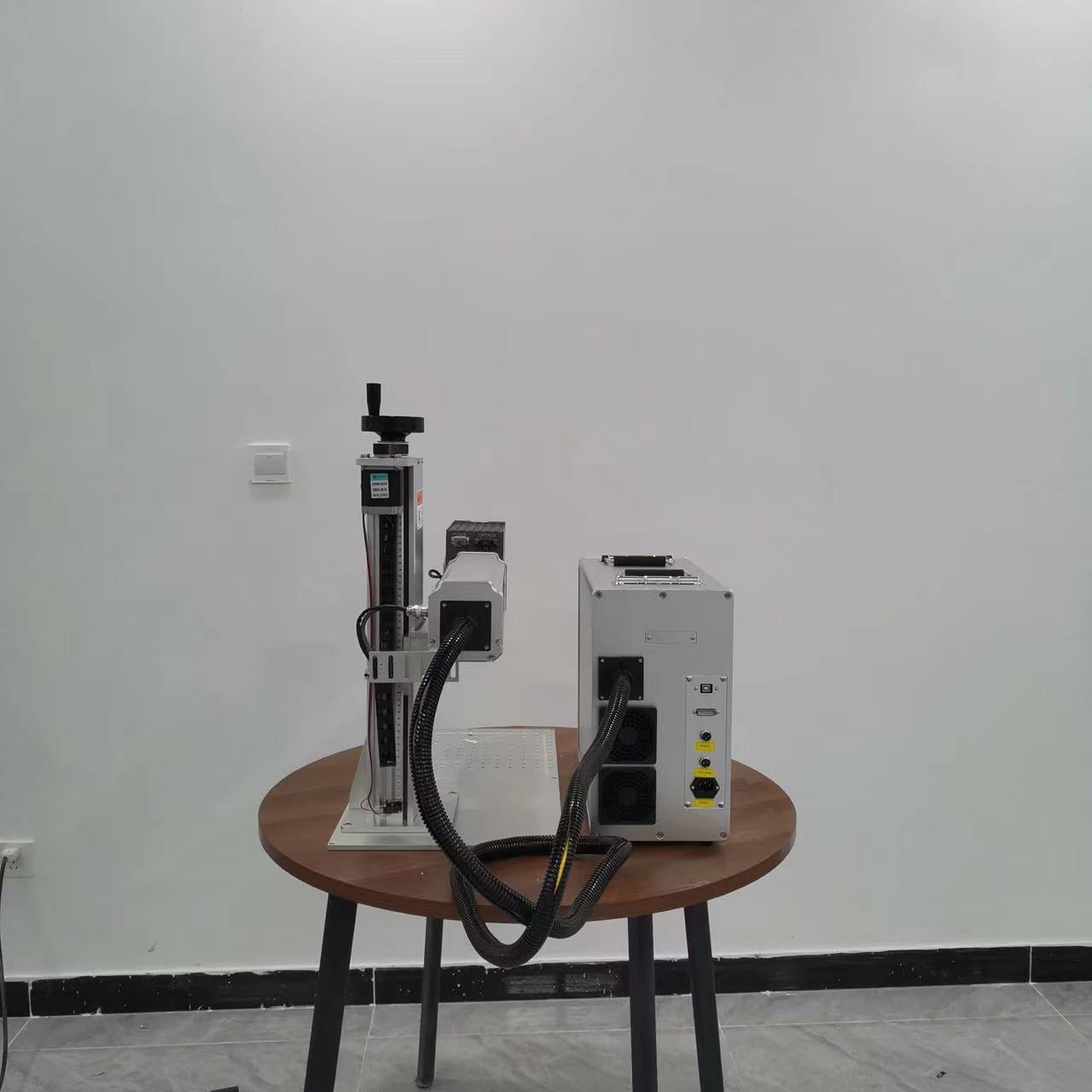

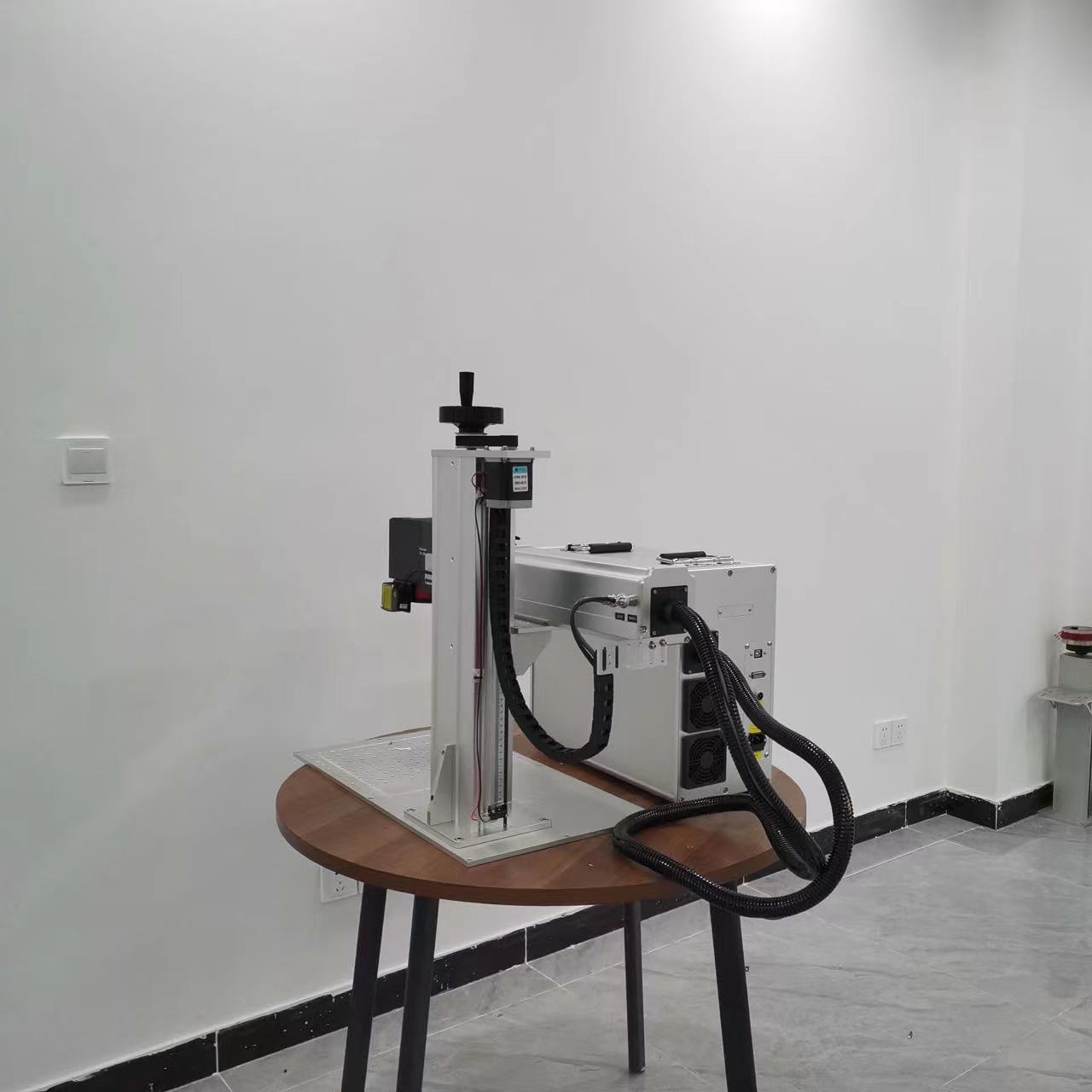

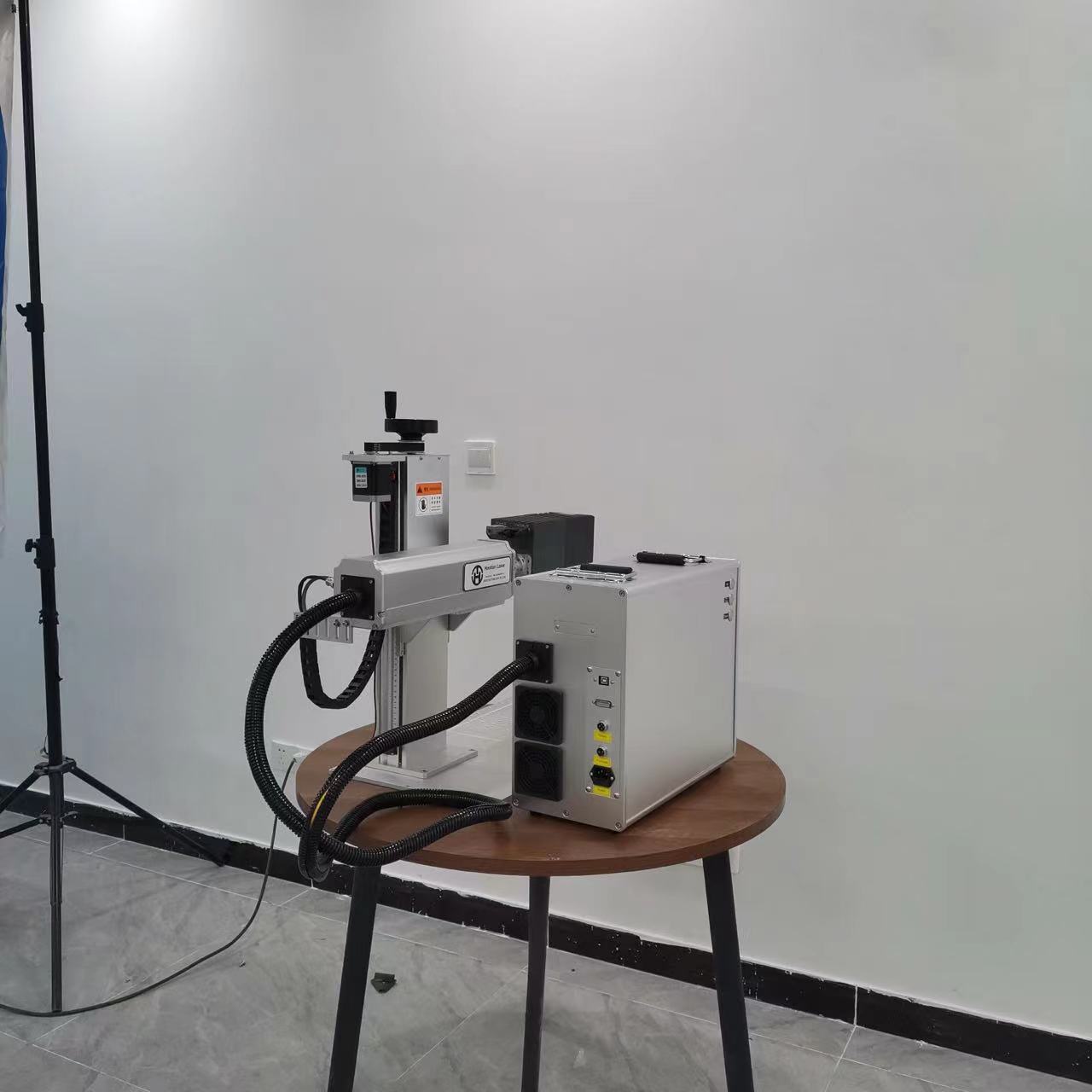

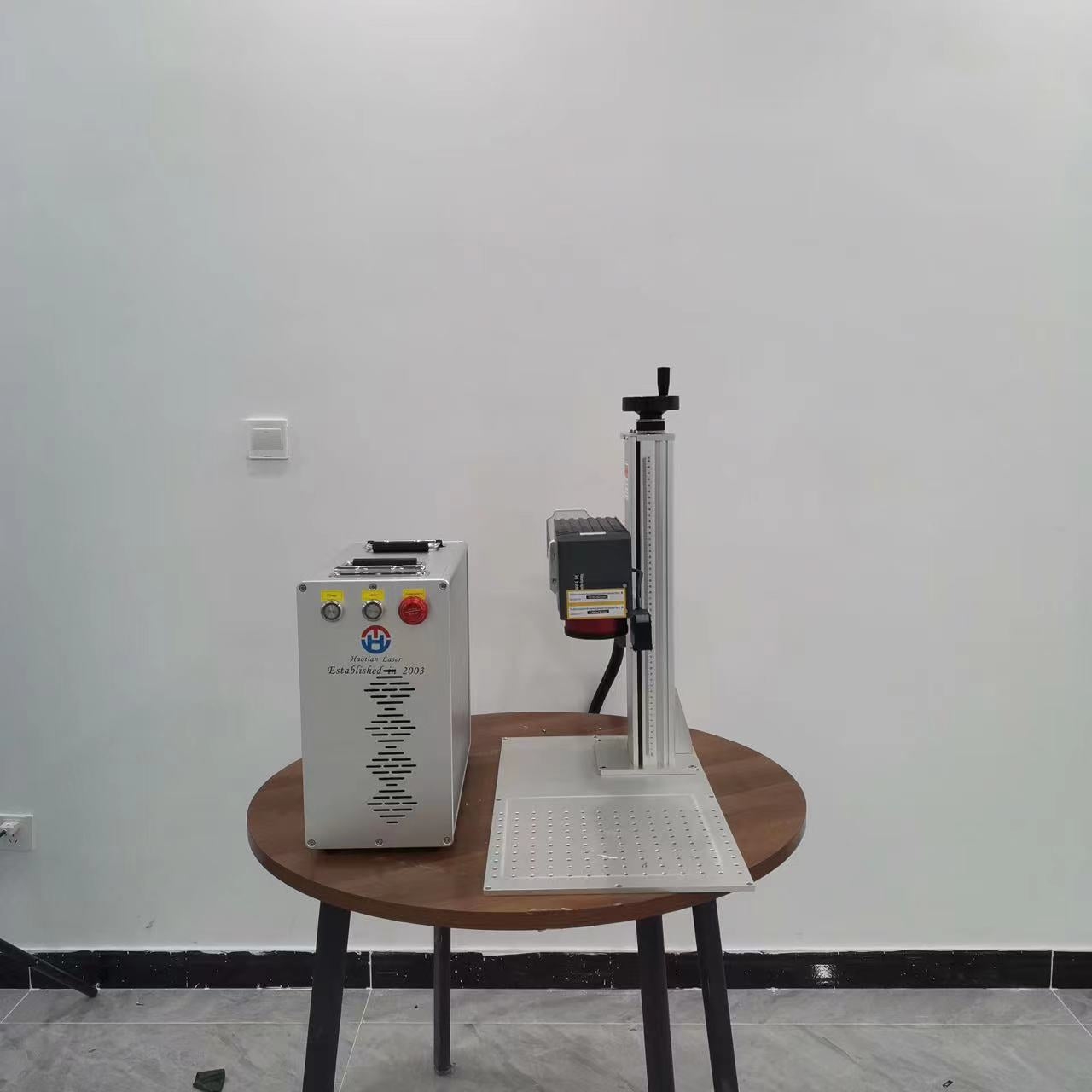

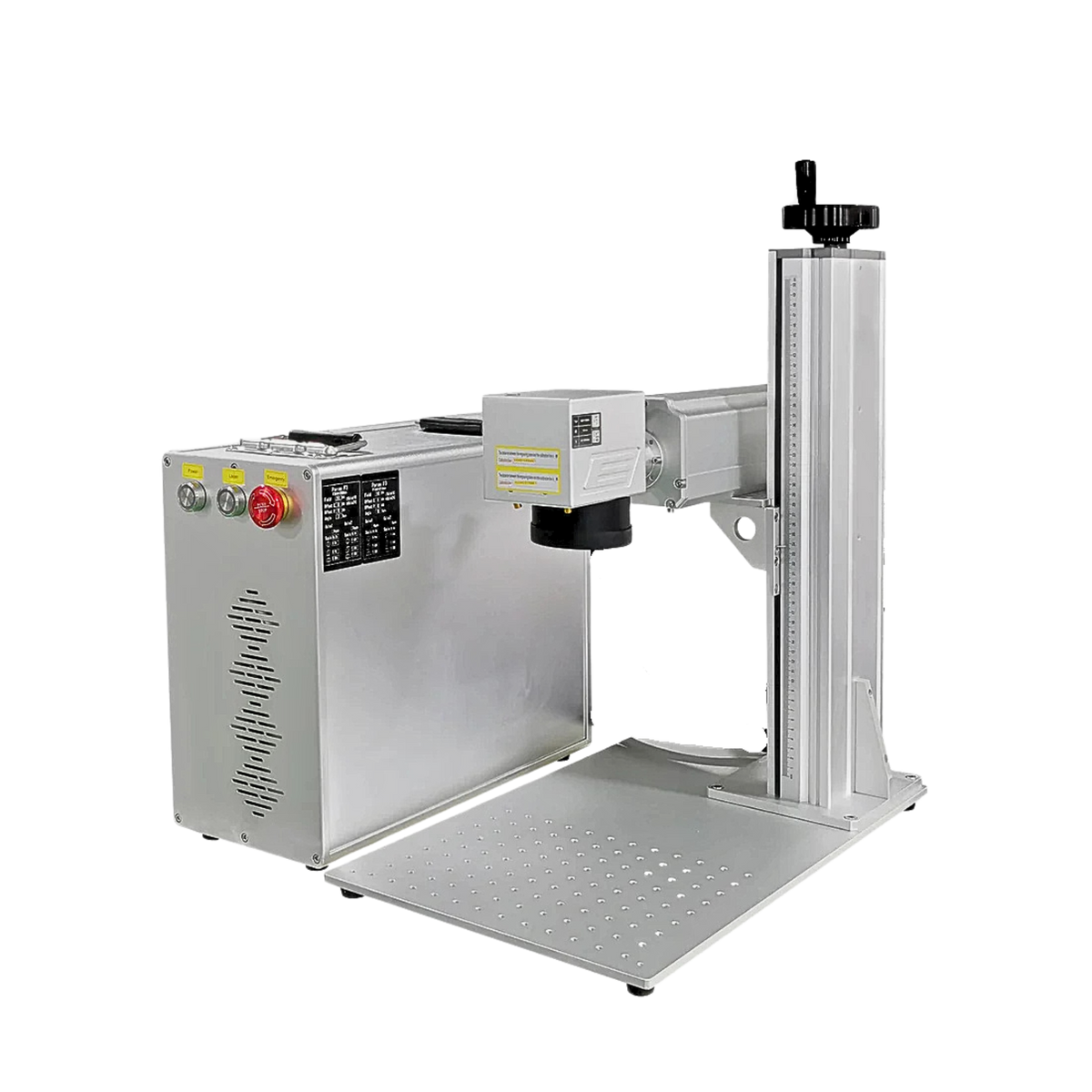

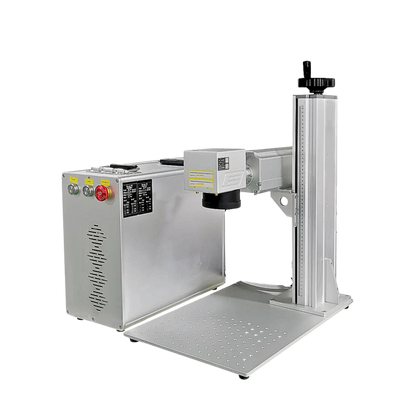

2.5D Ezcad3 Fiber Marking Machine
2.5D Ezcad3 Fiber Marking Machine
Warranty
Warranty
3 YEARS
Models List
Models List
- 20W JPT
- 30W JPT LP
- 30W JPT EM7 Mopa
- 50W JPT LP
- 60W JPT EM7 Mopa
- 80W JPT M7 Mopa
- 100W JPT M7 Mopa
- 120W JPT M7 Mopa
- 200W JPT M7 Mopa
Free Parts
Free Parts
- X1 USB cable
- X1 Power cable
- X1 Rotary and tools

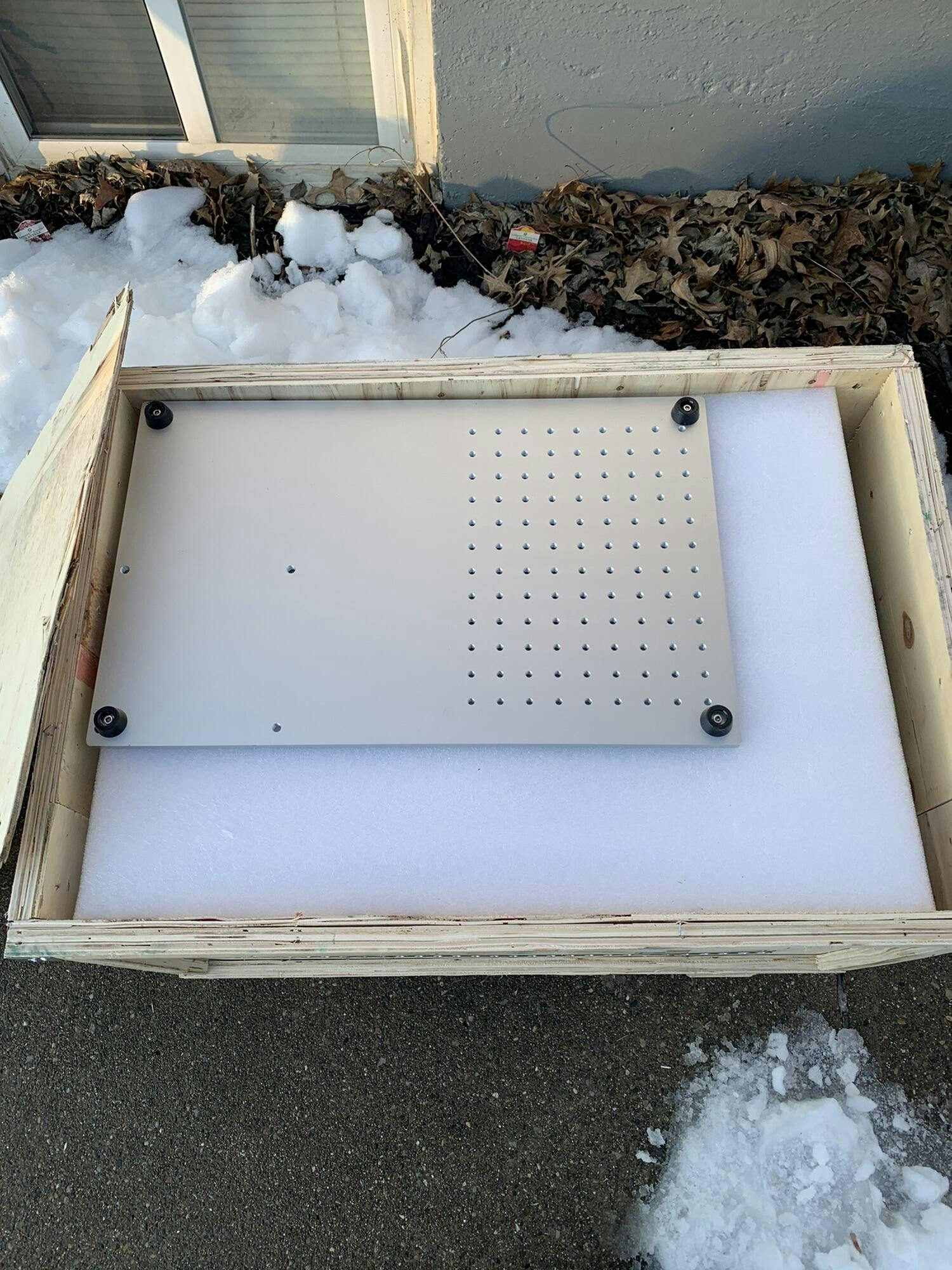

- X2pcs Position plate
- X10pcs Testing card
- X1 Foot Pedal
- X1 Wrech
- X1 Screws
- X1 Focus ruler
- X1 Extra lens
- X1 Quality safety glasses
- X1 Flash disk
Main Configuration
Main Configuration
- EZCAD Controller& Software(original)
- Double Red Dot for Adjust the focus
- Foot Switch, motorized Z
- Working size: 150x150MM (max can be 300X300mm)
- Laser Power: 20W/30/50/60/80W/100/120/200W
- Laser source: JPT
- High quality scanning head and lens
Detailed Parameters:
Effective Working Area |
150x150MM (max can be 300X300mm) |
Laser Power |
20W/30/50/60/80W/100/120/200W |
Wave Length |
1064nm |
Laser Frequency |
1-600KHz for LP source, and 1-4000KHZ for Mopa |
Computer System |
WINDOWS XP/Win7/8/10 32/64bits. Can not use Mac |
Minimum Character |
0.15mm |
Minimum Linear Width |
0.01mm |
Cooling way |
Air Cooling |
Maxi Marking Speed |
5000mm/s |
Data Transfer |
USB2.0 transmission |
Control System |
BJJCZ |
Graphic Format Supported |
PLT, DXF, STL, etc |
Compatible Software |
EZCAD3 |
Total Power |
500W (AC220V 50Hz /AC110V 50Hz) |
Share it
received the product in less than 10days. well package.pascal Lui was very understanding and patient on my inquiries and demand. the after service is incomparable. I got regular message checking about products and always ready to assist if problem should occur . HIGHLY recommend this company and pascal Lui.
Amazing service and fast shipping. Always there to answer questions. The Laser was packaged very well. Will do business with again!!

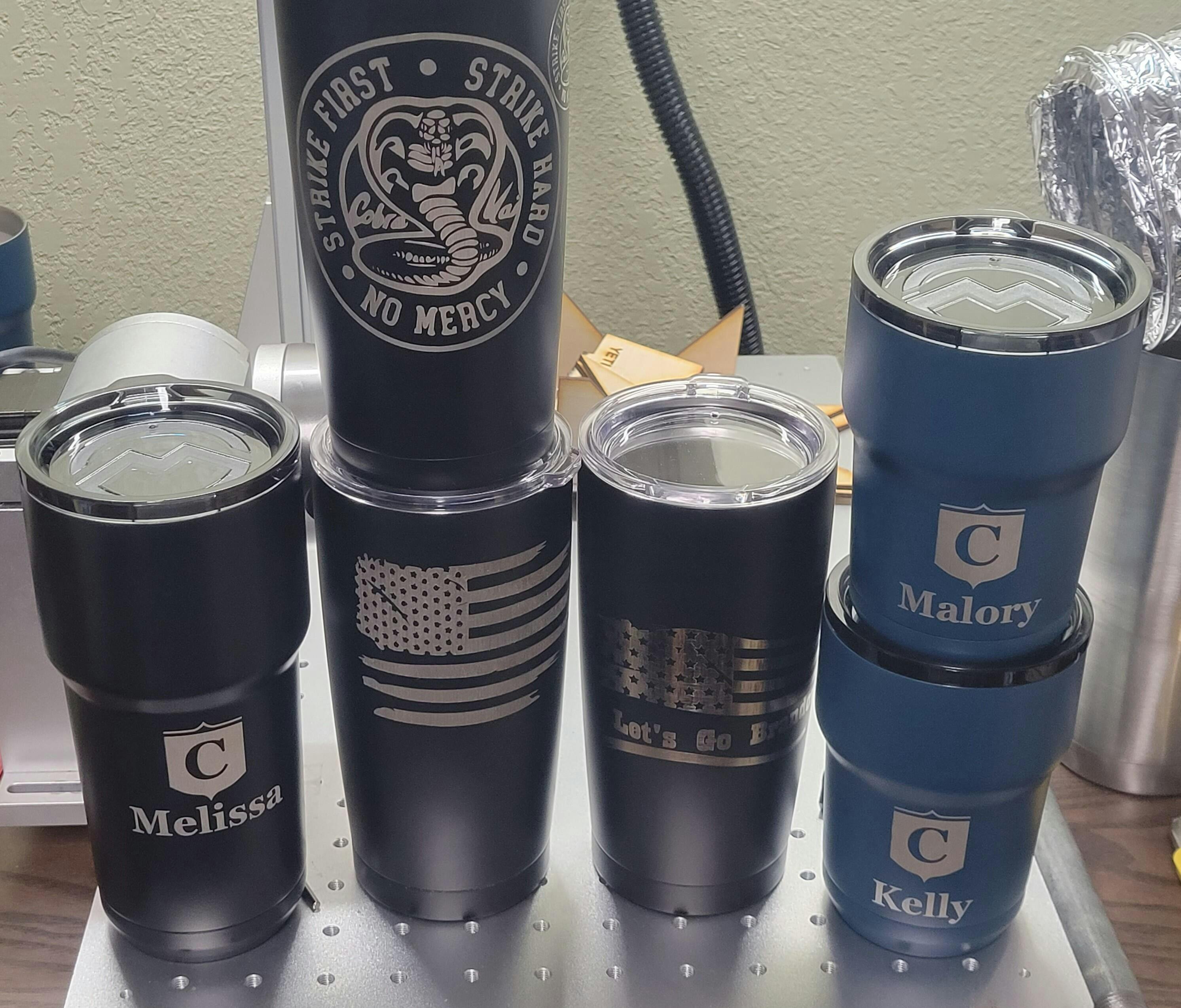

I have been very happy with my purchase. Questions that I have had have been responded to very quickly. He has even checked in a few times to see how things are going. I will definitely order from him again.when the time comes for a new or different machine.
