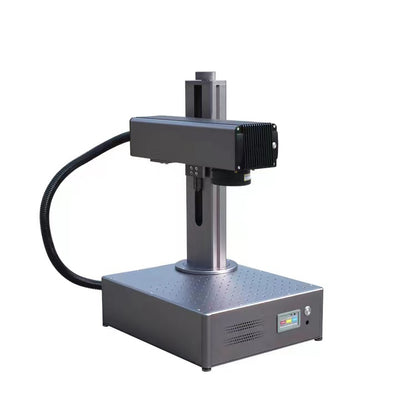

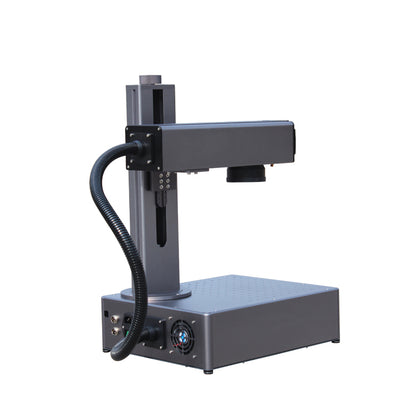

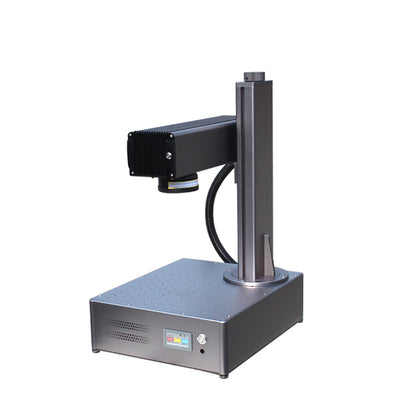

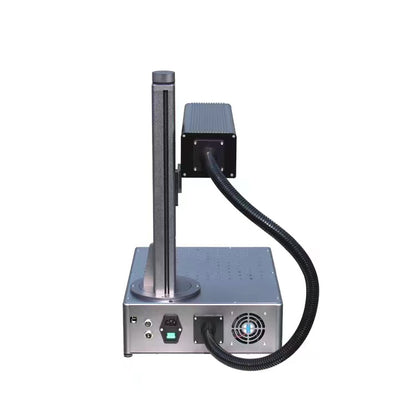

Compact Design JPT/Raycus Fiber Laser Marker
Compact Design JPT/Raycus Fiber Laser Marker
Warranty
Warranty
3 YEARS
Models List
Models List
- 20W JPT
- 30W JPT LP
- 30W JPT EM7 Mopa
- 50W JPT LP
- 60W JPT EM7 Mopa
- 80W JPT M7 Mopa
- 20W Raycus
- 30W Raycus
Free Parts
Free Parts
- X1 USB cable
- X1 Power cable
- X1 Rotary and tools
- X2pcs Position plate
- X10pcs Testing card
- X1 Foot Pedal
- X1 Wrech
- X1 Screws
- X1 Focus ruler
- X1 Extra lens
- X1 Quality safety glasses
- X1 Flash disk
Main Configuration
Main Configuration
- EZCAD Controller& Software(original)
- Double Red Dot for Adjust the focus
- Foot Switch, motorized Z
- Working size: 150x150MM (max can be 300X300mm)
- Laser Power: 20W/30/50/60/80W
- Laser source: JPT
- 100% aluminum machine cover
- high quality scanning head and lens
Detailed Parameters:
Effective Working Area |
150x150MM (max can be 300X300mm) |
Laser Power |
20W/30/50/60/80W for JPT and 20w/30w for Raycus |
Worktable |
Fixed high quality aluminum worktable |
Wave Length |
1064nm |
Laser Frequency |
1-600KHz for LP source, and 1-4000KHZ for Mopa. 30-60KHZ for 20W Raycus source, and 40-60KHZ for 30W Raycus |
Computer System |
WINDOWS XP/Win7/8/10 32/64bits, you can use Mac if you use Lightburn software |
Minimum Character |
0.15mm |
Minimum Linear Width |
0.01mm |
Cooling way |
Air Cooling |
Maxi Marking Speed |
5000mm/s |
Data Transfer: |
USB2.0 transmission |
Control System |
BJJCZ |
Graphic Format Supported: |
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP |
Compatible Software |
EZCAD2, Lightburn |
Total Power |
500W (AC220V 50Hz /AC110V 50Hz) |
Share it

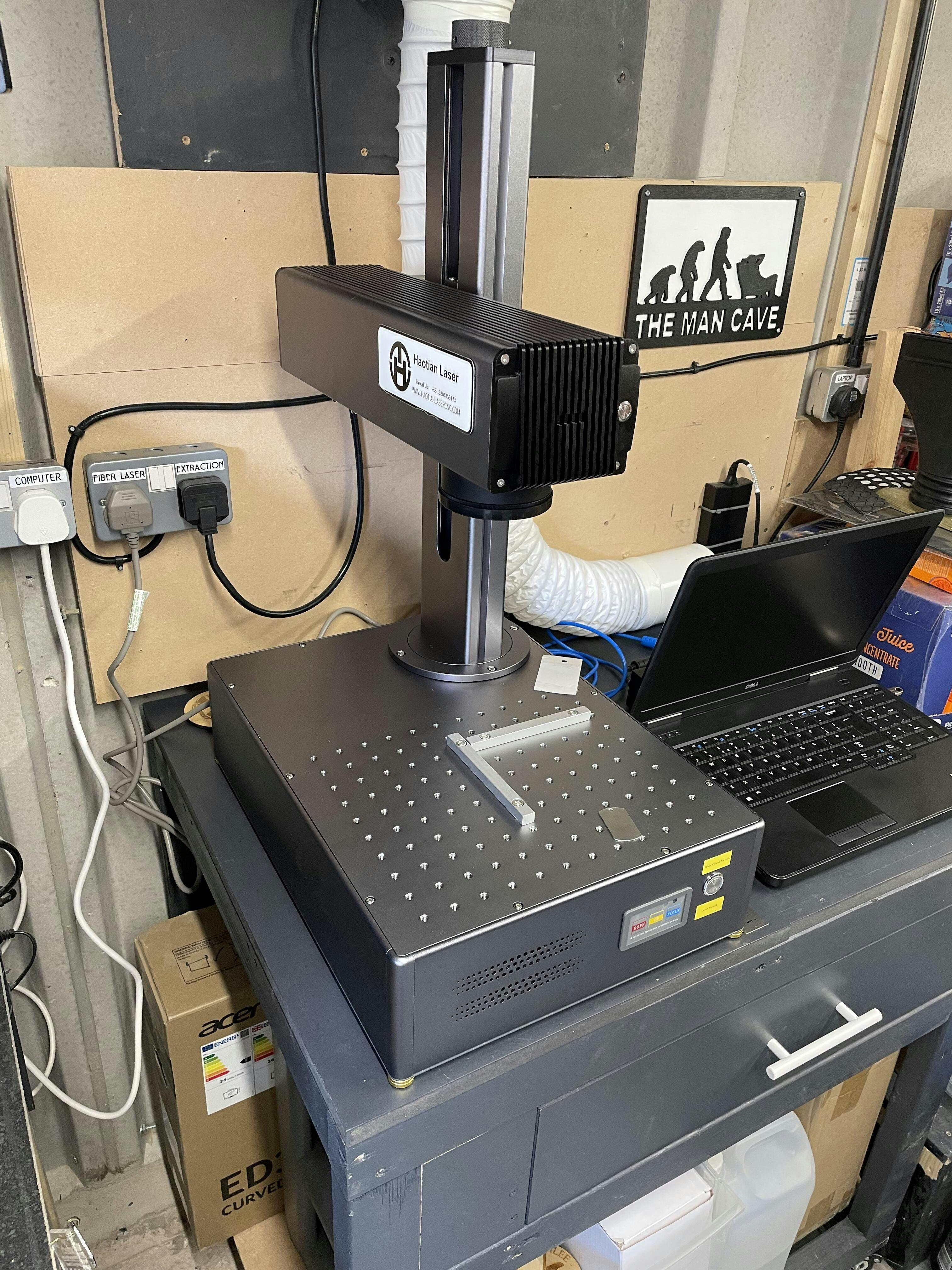

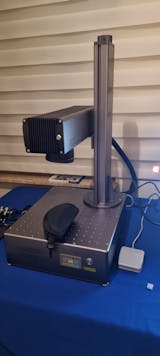

The laser was very well packed and simple to set up , all the supplied accessories were present. Once set up which was just a matter of inserting 4 hex bolts it switches on and worked flawlessly. I would definitely recommend the laser and the supplier

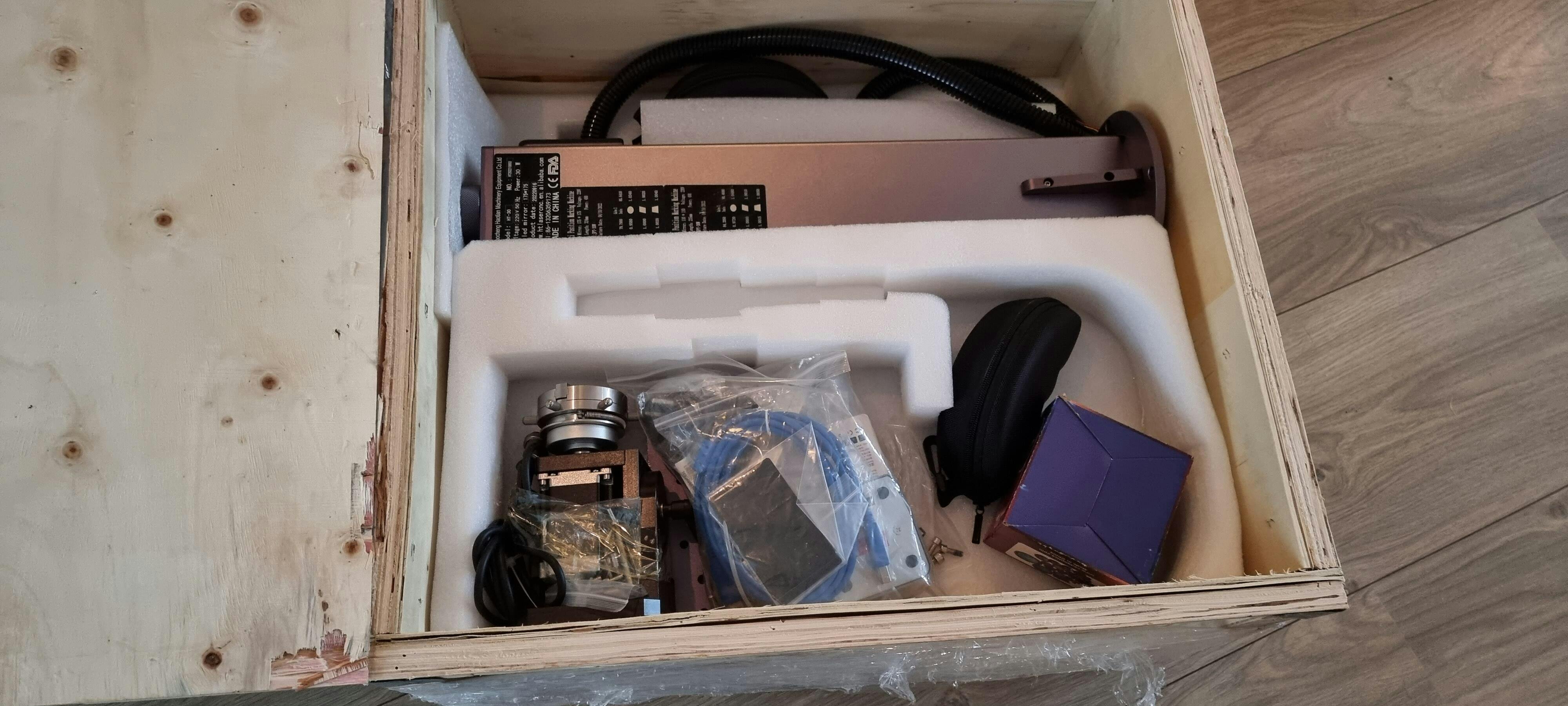

after listening to a lot of people pointing me out to Pascal of Haotian laser I contacted him and immediately noticed he really wanted to help out and find out exactly what I needed without pushing into a sale. after many chats and pictures and very very good advice I ordered a fiber 30w-jpt- compact. after that the process went very easy. and not long after I received my package very well packed. setting up was easy, I did made a small mistake with a cable wich I didn't connect tight and I didn't notice, so after contacting Mark from tech he knew immediately what to do. and dialing in went smooth. I did have since questions and they where answered very fast. I really like this machine, it's a very well built machine and I can really recommend this company.
best service and support ever!!!
This transaction was flawless, with a great product and great support. Thank you.
