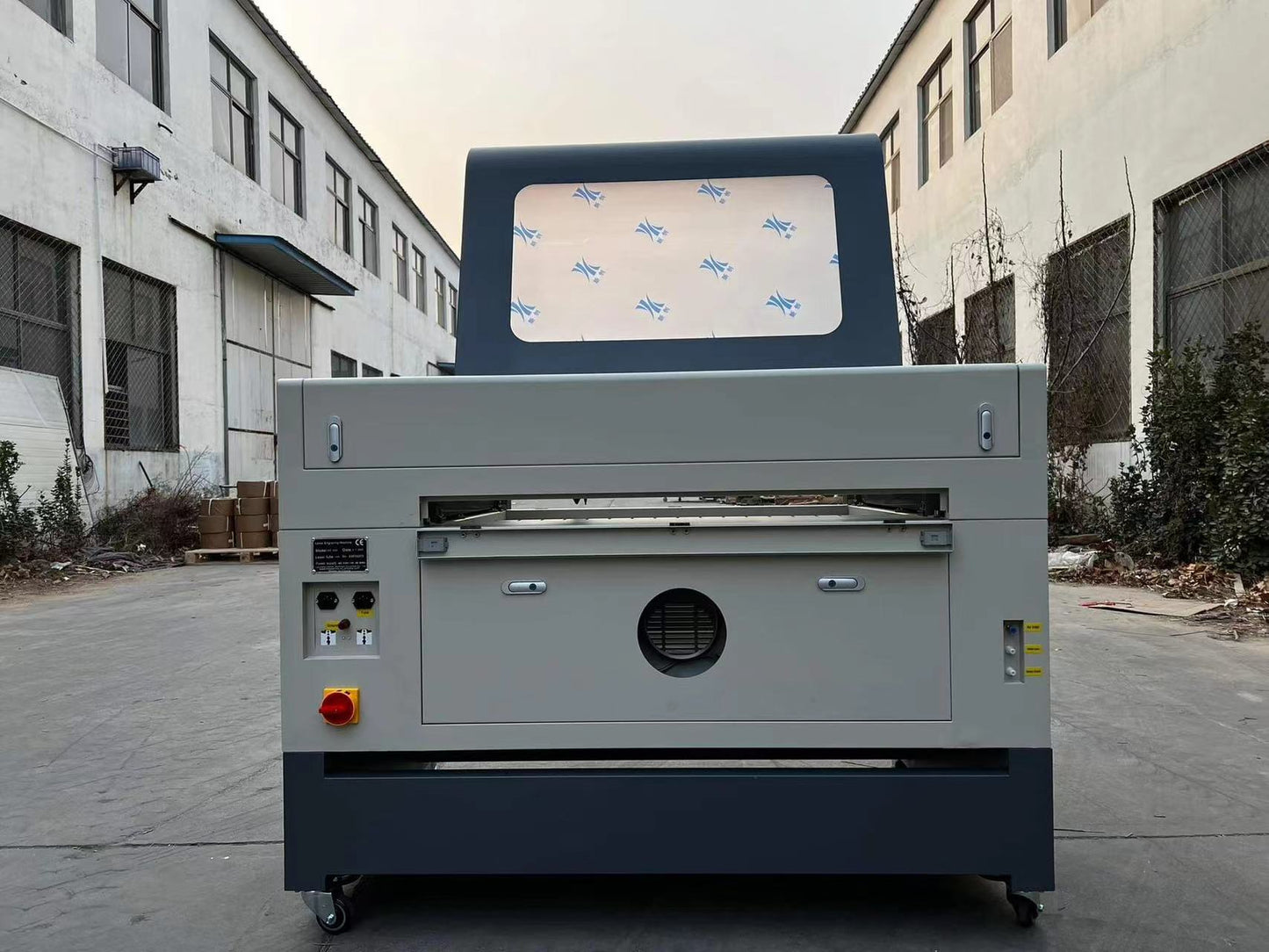

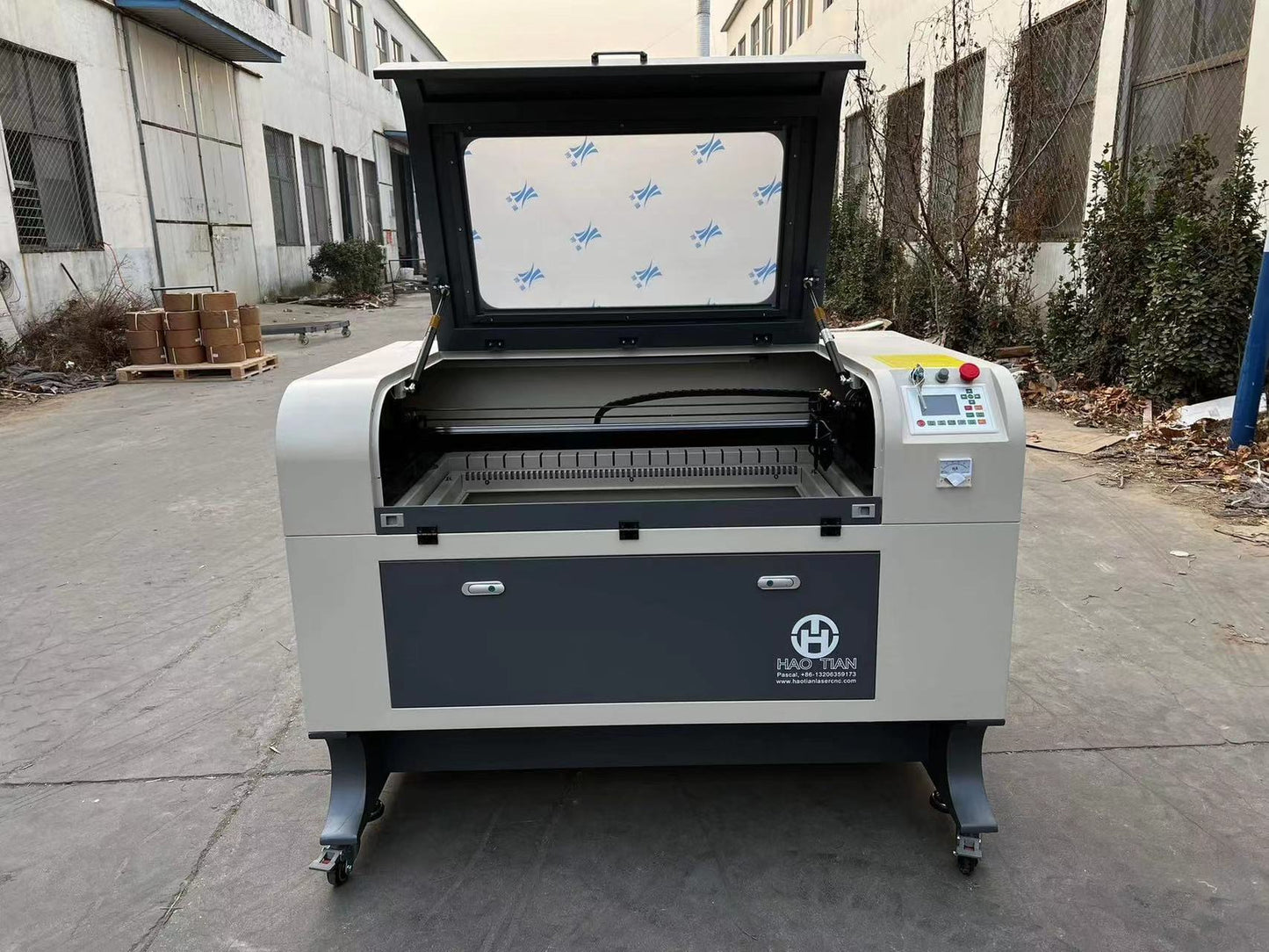

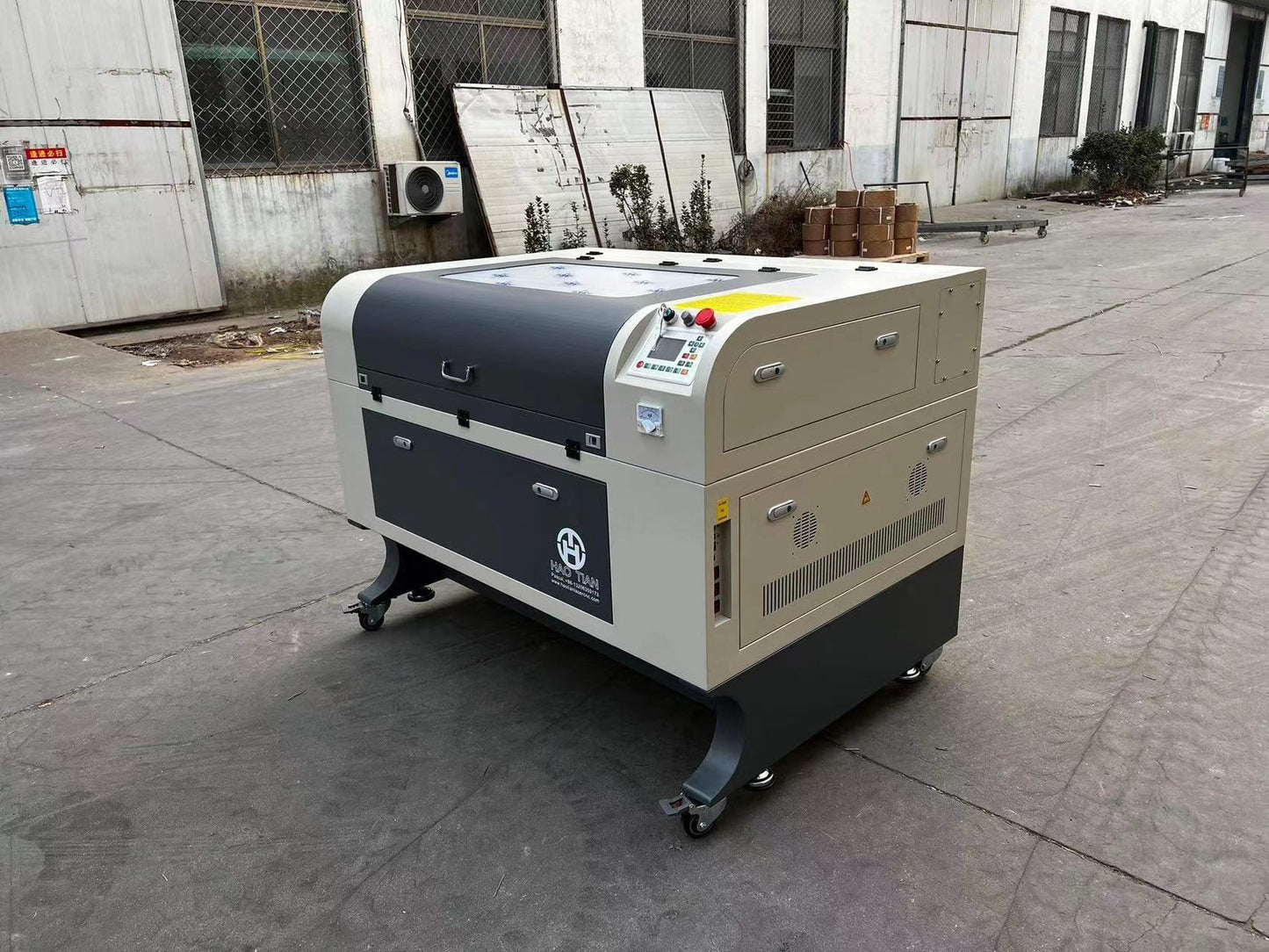

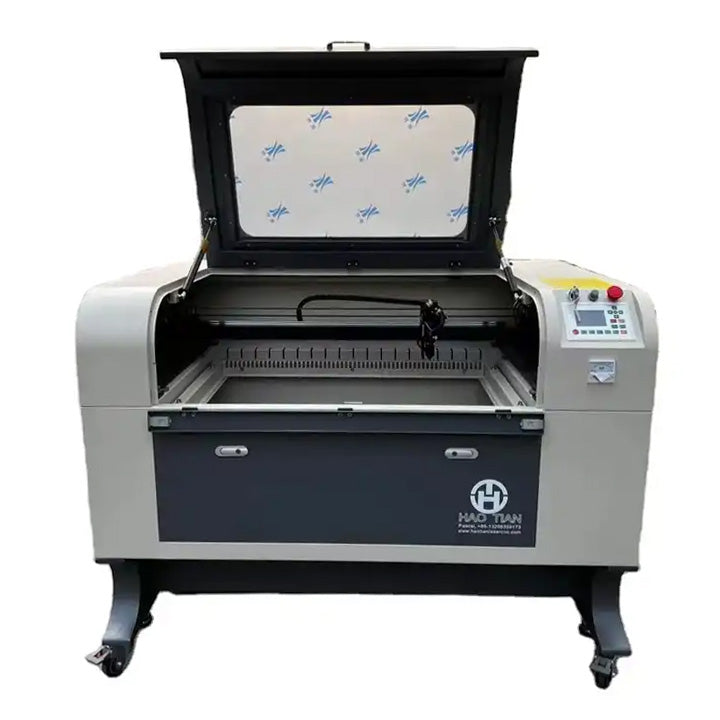

690 Laser Machine

690 Laser Machine

Regular price $5,400.00 USD
Regular price Sale price $5,400.00 USD
Sale Sold out

Warranty

2 YEARS

Models List

Free Parts

  • X1 USB cable
  • X1 Power cable
  • X1 Rotary and tools
  • X2pcs Position plate
  • X10pcs Testing card
  • X1 Foot Pedal
  • X1 Wrech
  • X1 Screws
  • X1 Focus ruler
  • X1 Extra lens
  • X1 Quality safety glasses
  • X1 Flash disk

Main Configuration

  • RD6 4 4 2 Controller
  • Working size: 600*900mm

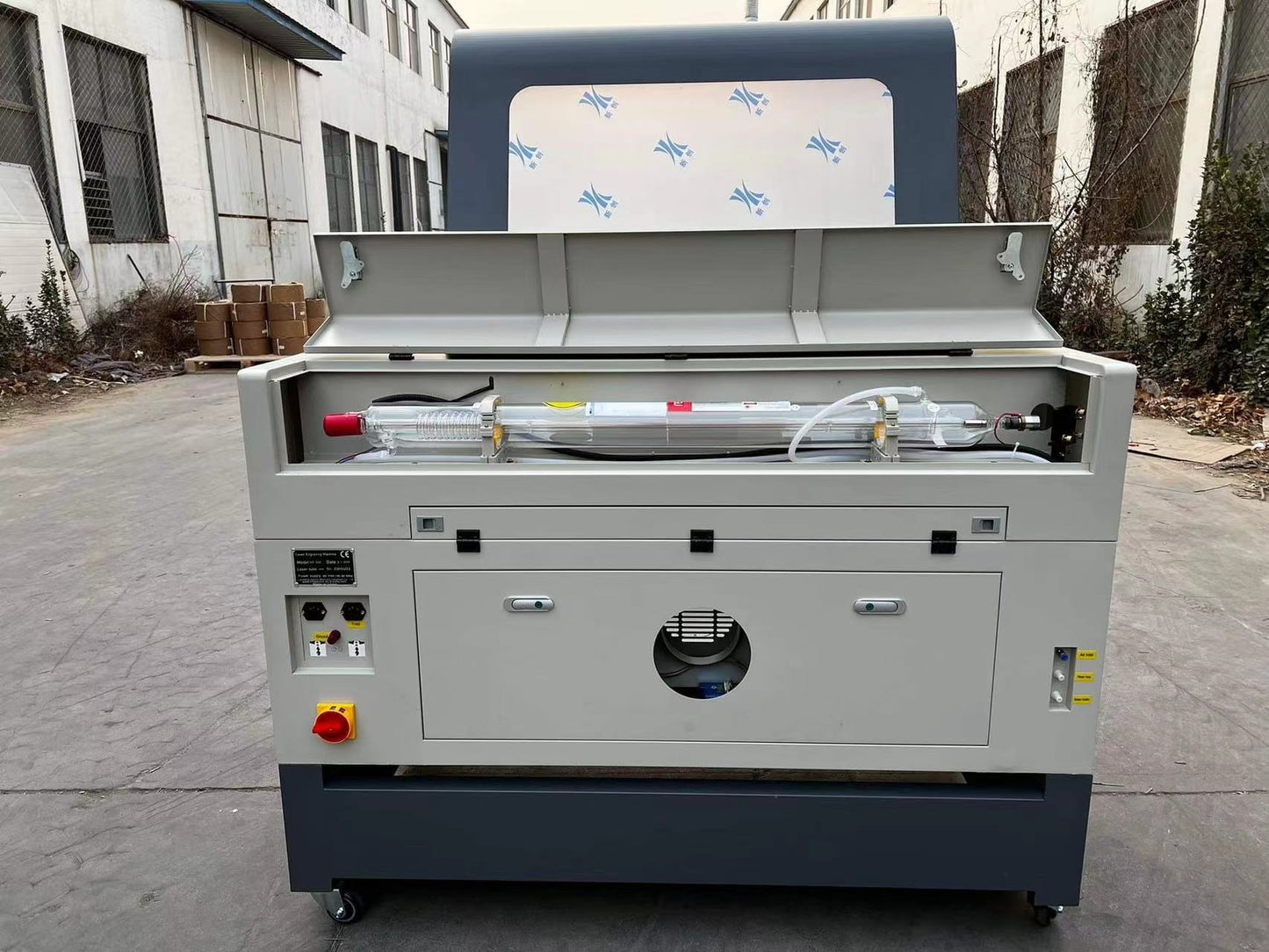

  • Laser power:RECI brand W2 tube(90- 100w)
  • Leadshine Motor and Motor driver
  • High Quality Laser Power Supply(DY13 model)
  • Aluminum Blade Worktable+ Honeycomb Worktable( both) Top quality ball screw UP/Down Worktable
  • S&A BRAND CW5200 Industrial Chiller
  • Imported Lens (IV II brand, 20mm diameter, 50.8mm focus length)
  • Imported Mirror(25mm diameter)
  • 550W exhaust fan
  • Rotary
  • 1 10 US PLUG Support Lightburn

Detailed Parameters:

Effective Working Area

( X=900 mm)*( Y=600 mm)*( Z=230 mm)

Laser Power

W2 tube(90- 100w)

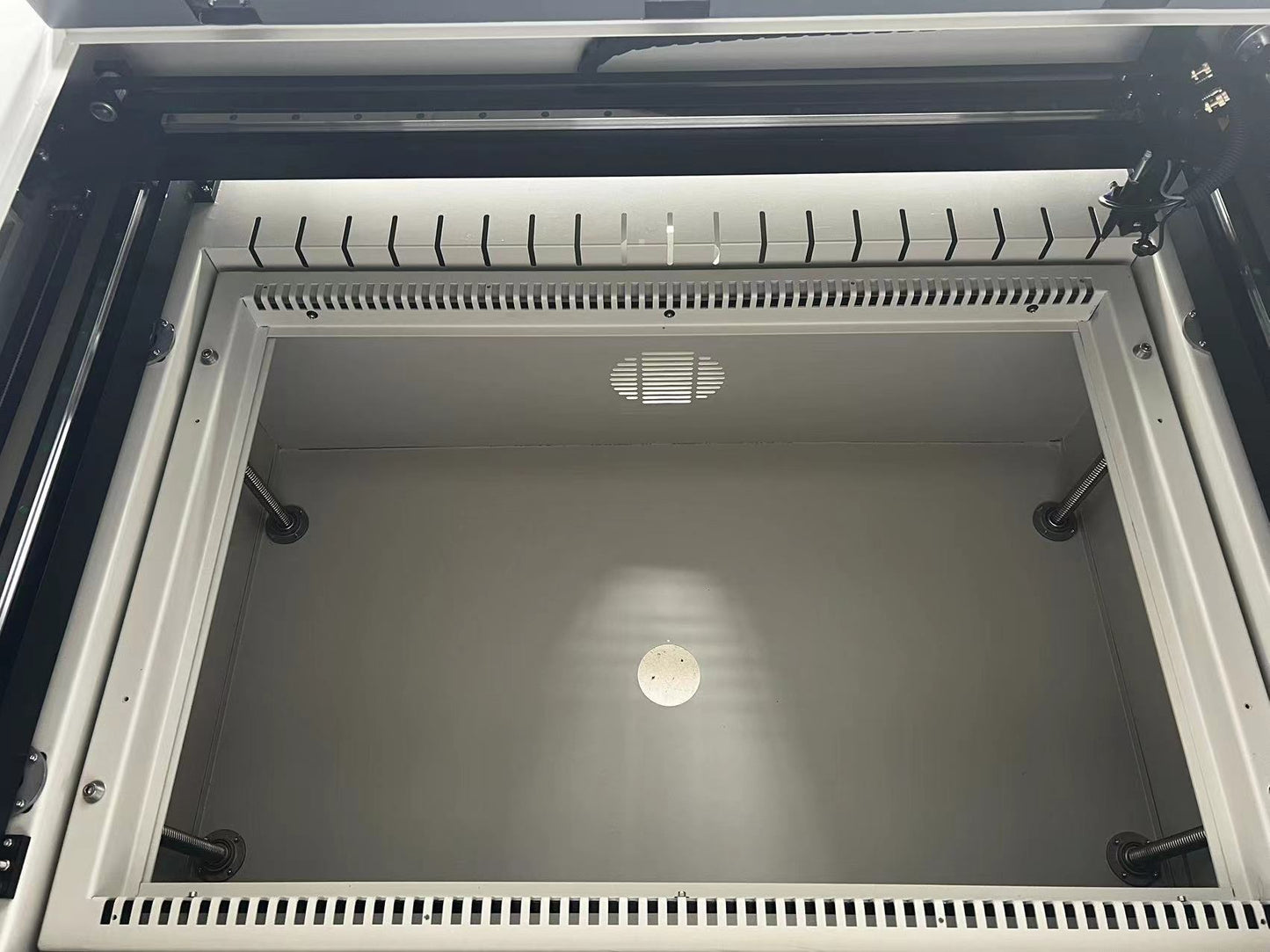

Worktable

Aluminum Blade Worktable& Honeycomb

Motorized Up& down worktable with belt

Guide Rail

HIWIN 18MM GUIDE RAIL

Driver & Motor

Leadshine hybrid servo motors

Computer System

WINDOWS XP/Win7/Win8/10

Machine Color

Optional

Min shaping character

Character 2x2mm ,Letter 1x1mm

Voltage Input

1 10V US PLUG

Maxi Engrave Speed

1000mm/s

Maxi Cutting Speed

25mm/s, depends on materials

Data Transfer:

Ethernet ( 10/ 100M) , USB2.0 transmission , Flash disk

Control System

DSP RDL6442 Controller/Leetro MPC6525A Controller

Graphic Format Supported:

AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Max. Power Consumption

1500W

Water Protecting Sensor
and Alarm

Yes

Machine Size

1380*1030*1020mm

Package Weight

400kg

Package Size

1500*1150*1300mm
