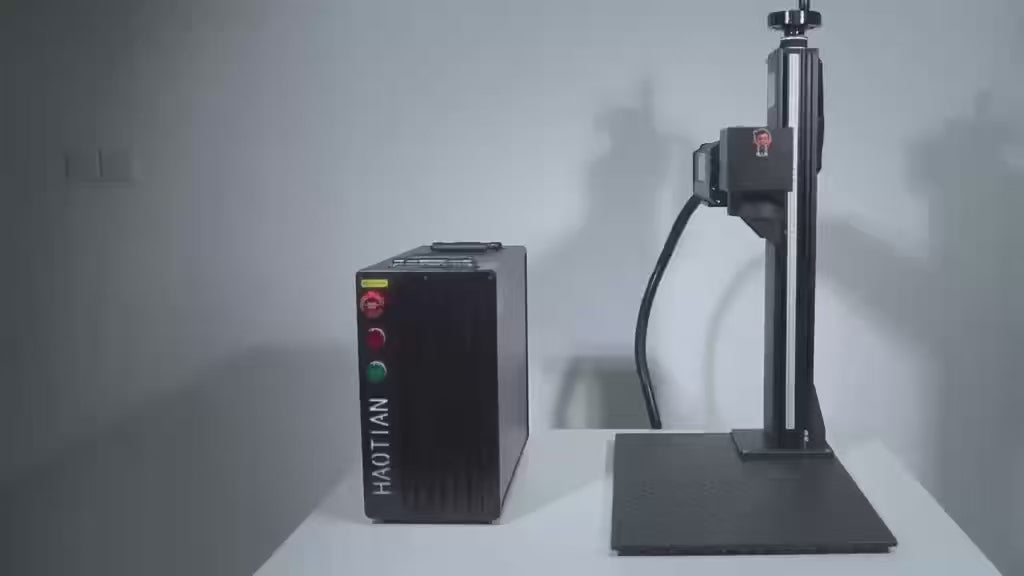

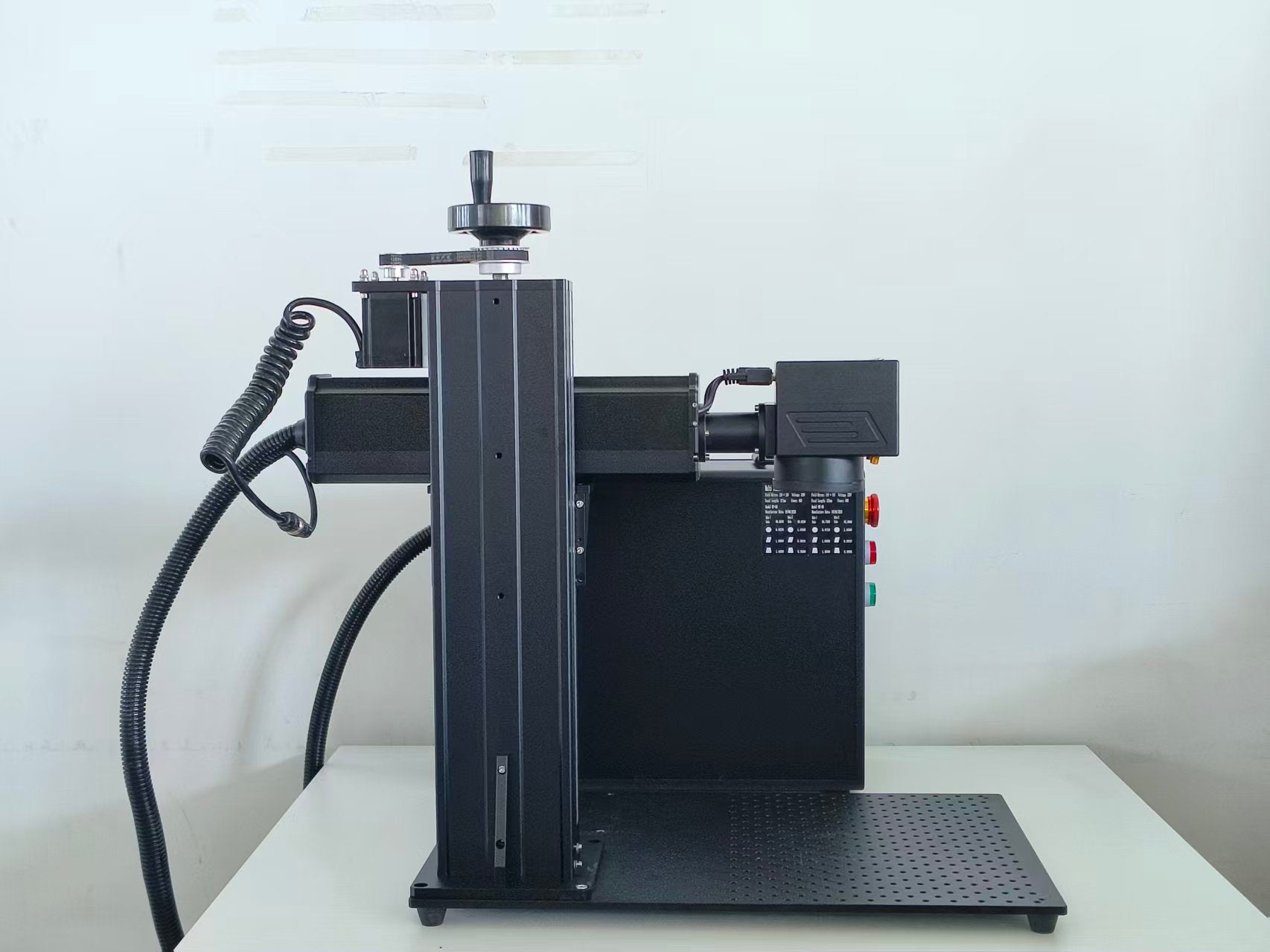

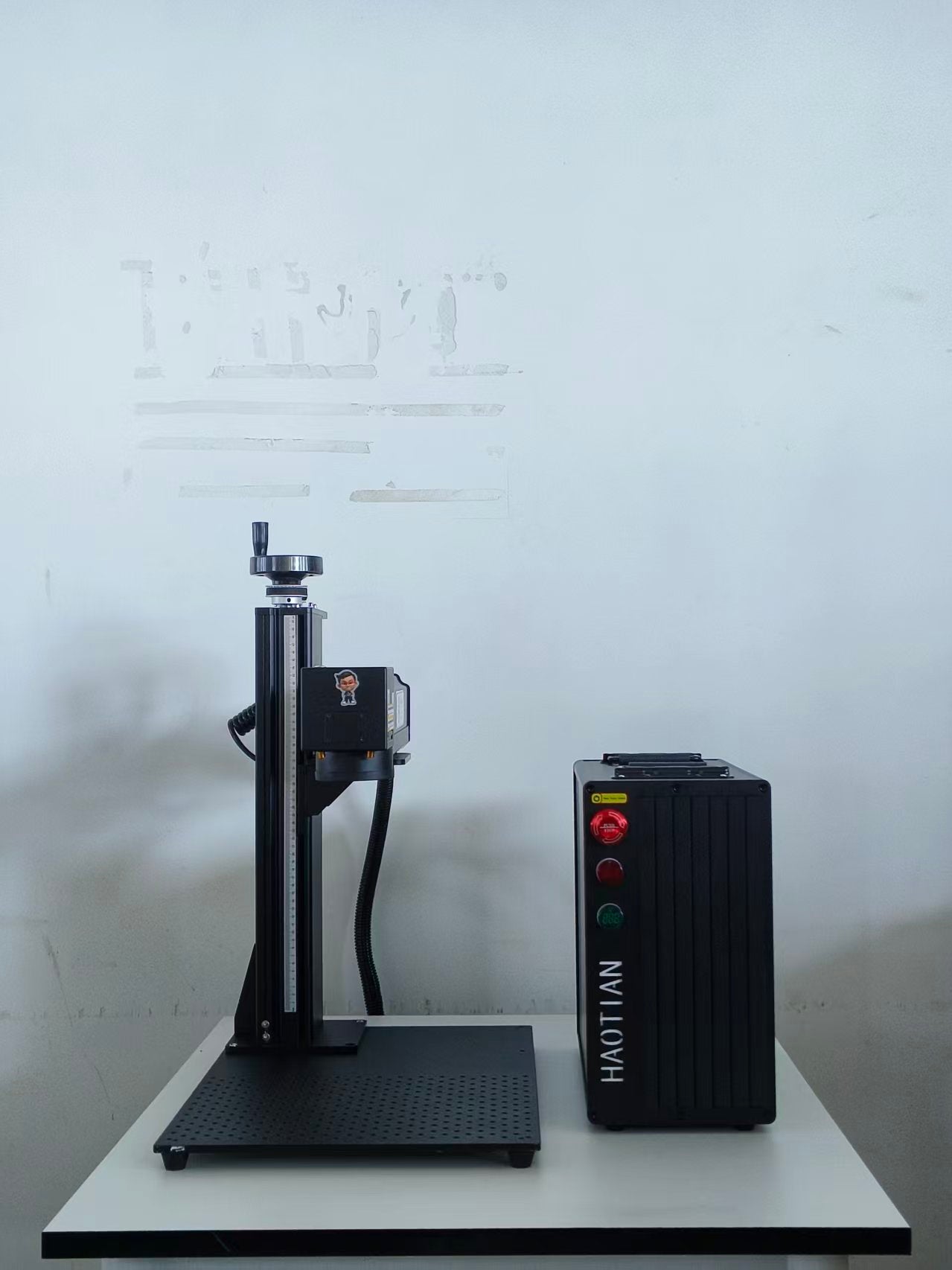

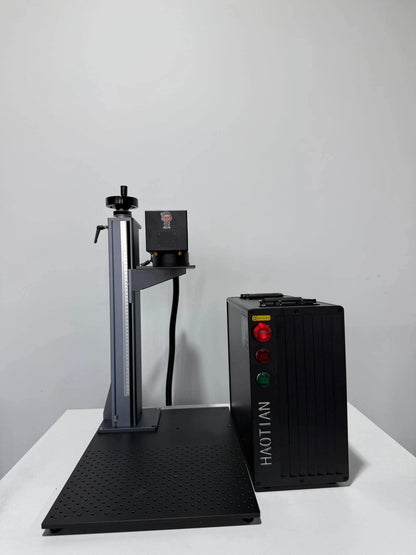

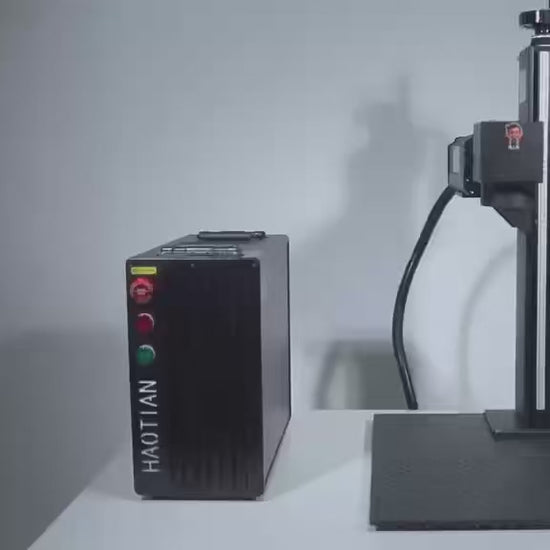

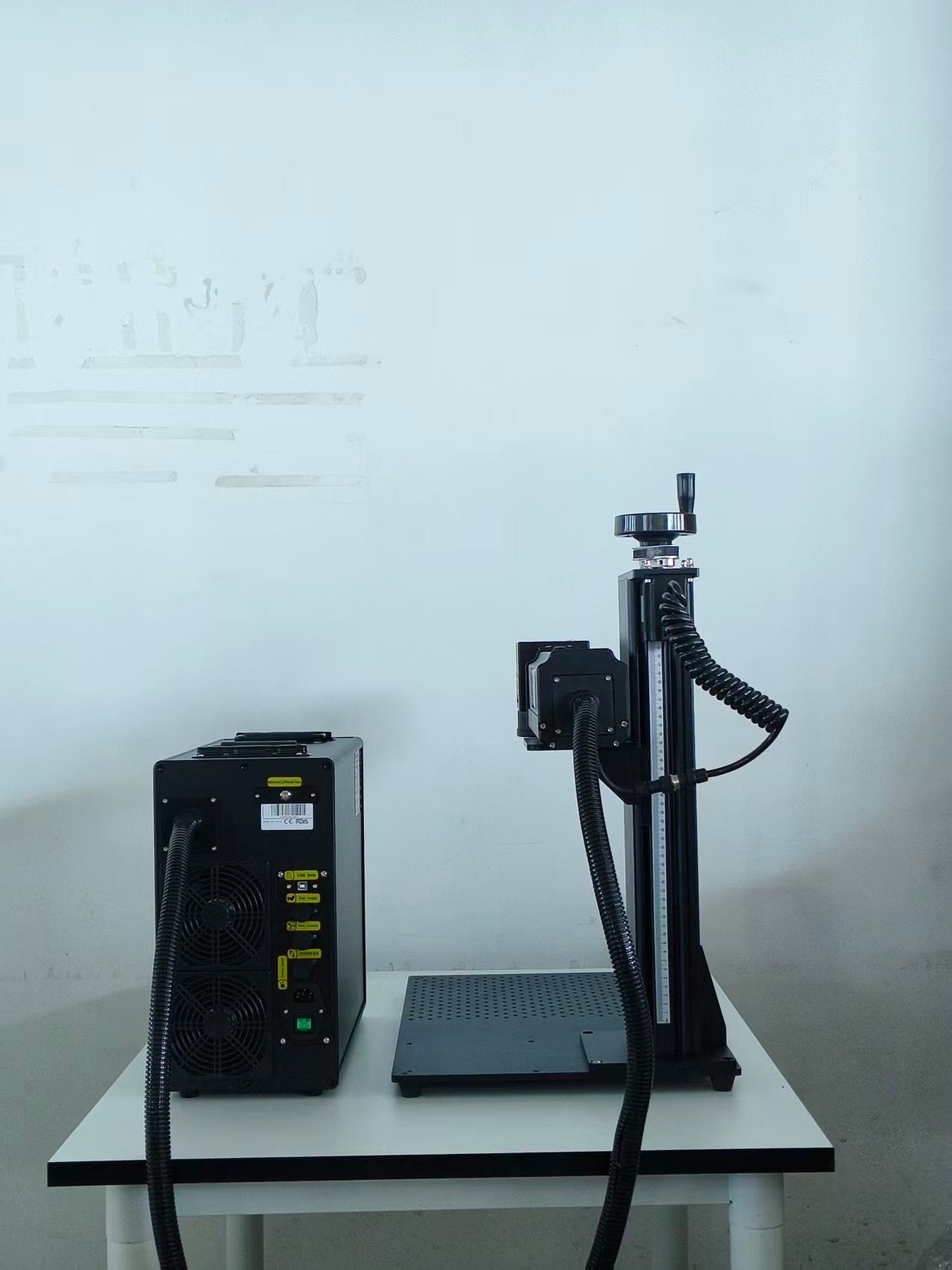

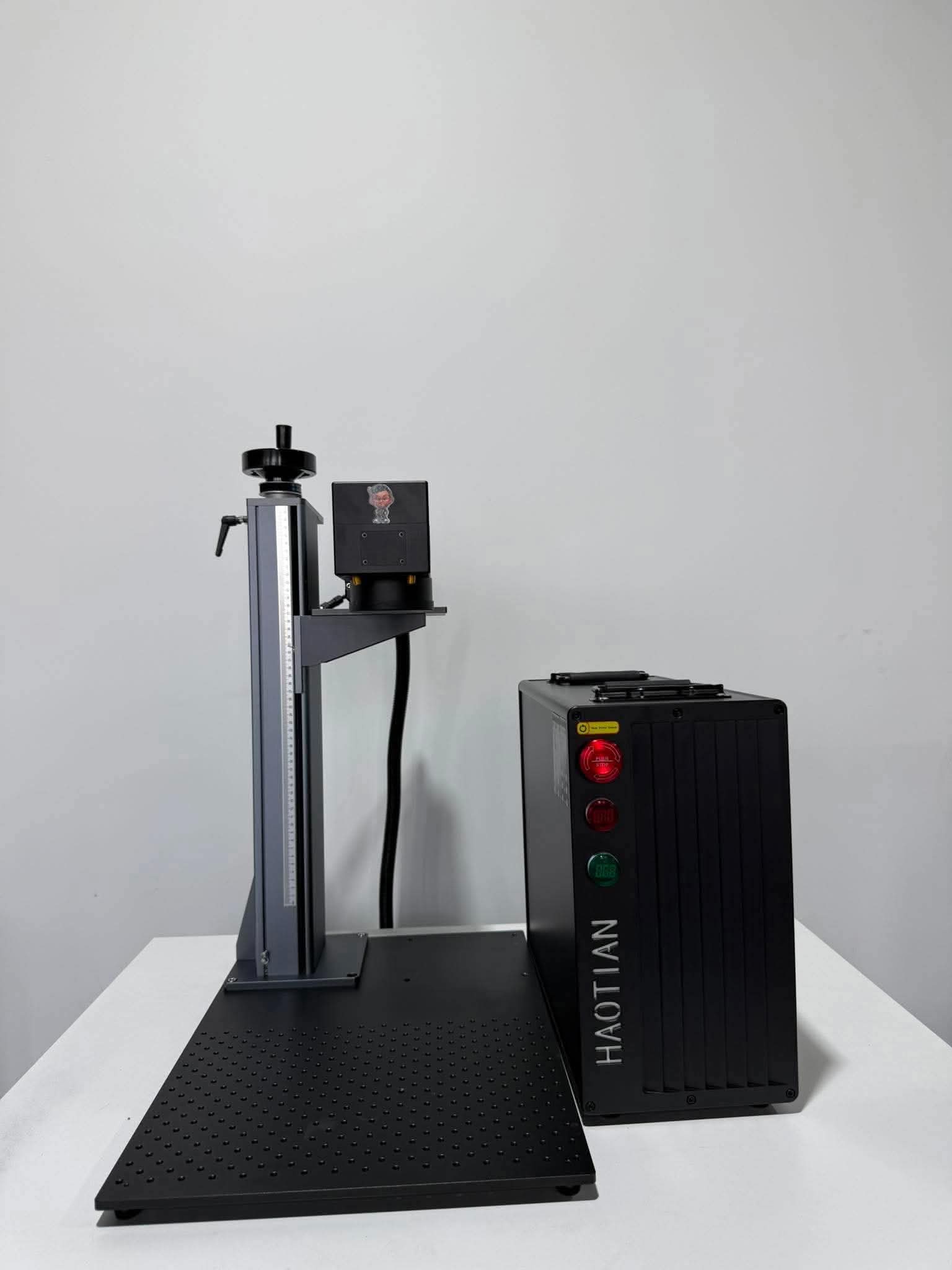

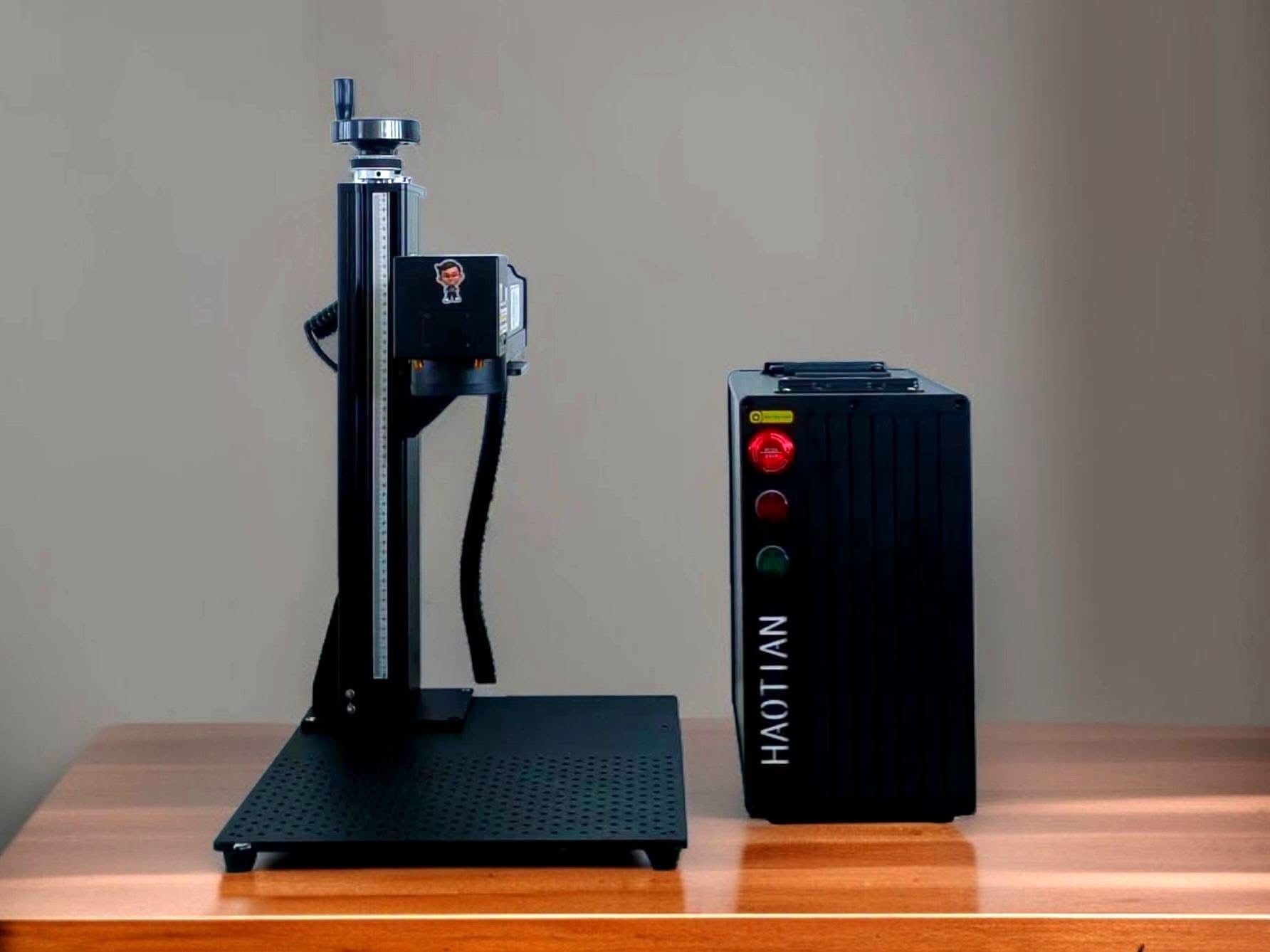

Split design JPT/Raycus fiber laser marker
Split design JPT/Raycus fiber laser marker
Couldn't load pickup availability
Warranty
Warranty
3 YEARS
Models List
Models List
- 20W JPT
- 30W JPT LP
- 30W JPT EM7 Mopa
- 50W JPT LP
- 60W JPT EM7 Mopa
- 80W JPT M7 Mopa
- 100W JPT M7 Mopa
- 120W JPT M7 Mopa
- 200W JPT M7 Mopa
- 20W Raycus
- 30W Raycus
- 50W Raycus
Free Parts
Free Parts
- X1 USB cable
- X1 Power cable
- X1 Rotary and tools
- X2pcs Position plate
- X10pcs Testing card
- X1 Foot Pedal
- X1 Wrech
- X1 Screws
- X1 Focus ruler
- X1 Extra lens
- X1 Quality safety glasses
- X1 Flash disk
Main Configuration
Main Configuration
- EZCAD Controller& Software(original)
- Double Red Dot to Adjust the focus
- Foot Switch, manual focus (motorized Z is optional, US$100 higher)
- Working size: 150x150MM (max can be 300X300mm)
- Laser Power: 20W/30/50/60/80W/100/120/200W
- Laser source: JPT
- High-quality scanning head and lens
Detailed Parameters:
Effective Working Area |
150x150MM (max can be 300X300mm) |
Laser Power |
20W/30/50/60/80W/100/120/200W |
Wave Length |
1064nm |
Laser Frequency |
1-600KHz for LP source, and 1-4000KHZ for Mopa. 30-60KHZ for 20W Raycus and 40-60KHZ for 30W Raycus and 50-100KHZ for 50W Raycus |
Computer System |
WINDOWS XP/Win7/8/10 32/64bits, you can use Mac if you use Lightburn software |
Minimum Character |
0.15mm |
Minimum Linear Width |
0.01mm |
Cooling way |
Air Cooling |
Maxi Marking Speed |
5000mm/s |
Data Transfer: |
USB2.0 transmission |
Control System |
BJJCZ |
Graphic Format Supported: |
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP |
Compatible Software |
EZCAD2, Lightburn |
Total Power |
500W (AC220V 50Hz /AC110V 50Hz) |
Share it
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/Picture4.png?v=1699513791&width=1445)
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/Untitled-1-Recovered_61880691-2b55-4eb6-af9a-825a3da78fb5.png?v=1704538315&width=1445)
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/Picture4_1.png?v=1704538315&width=1445)
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/1_6cf46aa9-fa5b-44c1-b31e-298f94312dd3.jpg?v=1704538315&width=1445)
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/2_1c110345-018a-46ff-9144-0b1210e2e28f.jpg?v=1704538315&width=1445)
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/3_8d45f914-a256-45a8-b609-837ed45b943c.jpg?v=1704538315&width=1445)
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/4_c990c524-a0f4-4b5d-806b-11627ddc94d1.jpg?v=1704538315&width=1445)
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/5_1f1a21ce-9680-4734-b05c-969adb8944dd.jpg?v=1704538315&width=1445)
![Split design JPT/Raycus fiber laser marker](http://haotianlaser.store/cdn/shop/files/6.jpg?v=1704538315&width=1445)
Very quick shipping. Pascal is awesome. Worked with me mid build to do a change with no issues at all. Still learning the laser, but so far WAY above my expectations. I'm having a blast with this unit. Will definitely be purchasing from Pascal and HAOTIAN again..
Great product that was up and running within a day. The laser was expertly packed. Customer service has been amazing with very fast responses within a day before and after the purchase. Highly recommended.
I purchased my laser in May of 23' and I have loved every minute of it since then. Pascal and his team of support helped me and reinsured me in my purchase, delivery and set up. They have a excellent team and a excellent product! I will purchase from them again!
Pascal and Bella are so easy to work with their prices cannot be beat. It only took 10 days from when I placed my order for me to have my laser at my doorstep. It’s built well put together very nicely and light burn recognized it instantly it is running flawlessly. What a great company will definitely buy from them again in the future.
I purchased my fiber laser from Haotian based on a recommendation from a friend who had dealt with this company in the past. From the moment I reached out to them via email for a quote, Pascal and Bella were both extremely professional and very responsive to the myriad of questions that I had. I've never owned a Fiber laser prior to this and they were super patient and answered all my questions in lay terms that a newb could understand. After the sale, I had additional setup questions and they continued to be extremely responsive and offered me assistance well after normal business hours via FB messenger. Even more impressive, all the lens corrections and settings had been fine tuned and memorialized on metal engraved cards attached to the side of my laser source. The only settings I really had to tweak were some timing, offset and scale adjustments I couldn't be more pleased with the entire transaction and will most definitely be purchasing from them again in the future!
