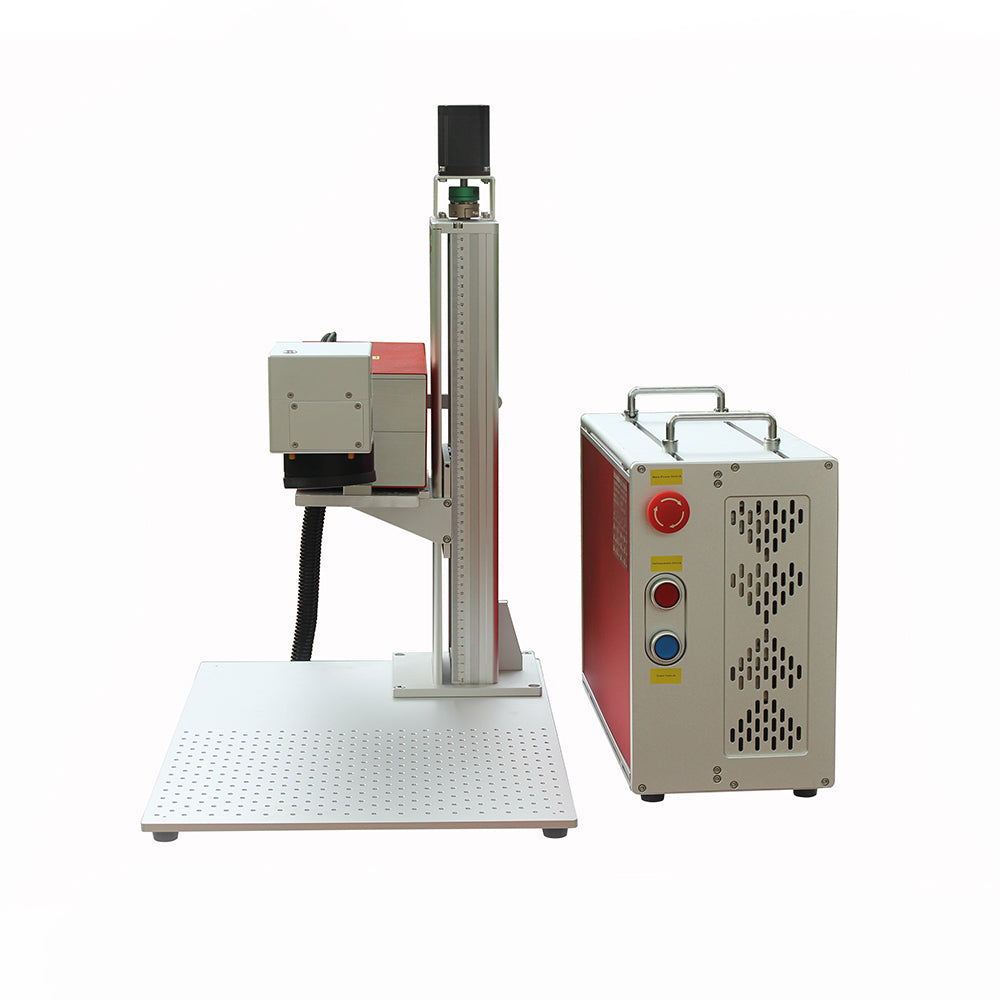

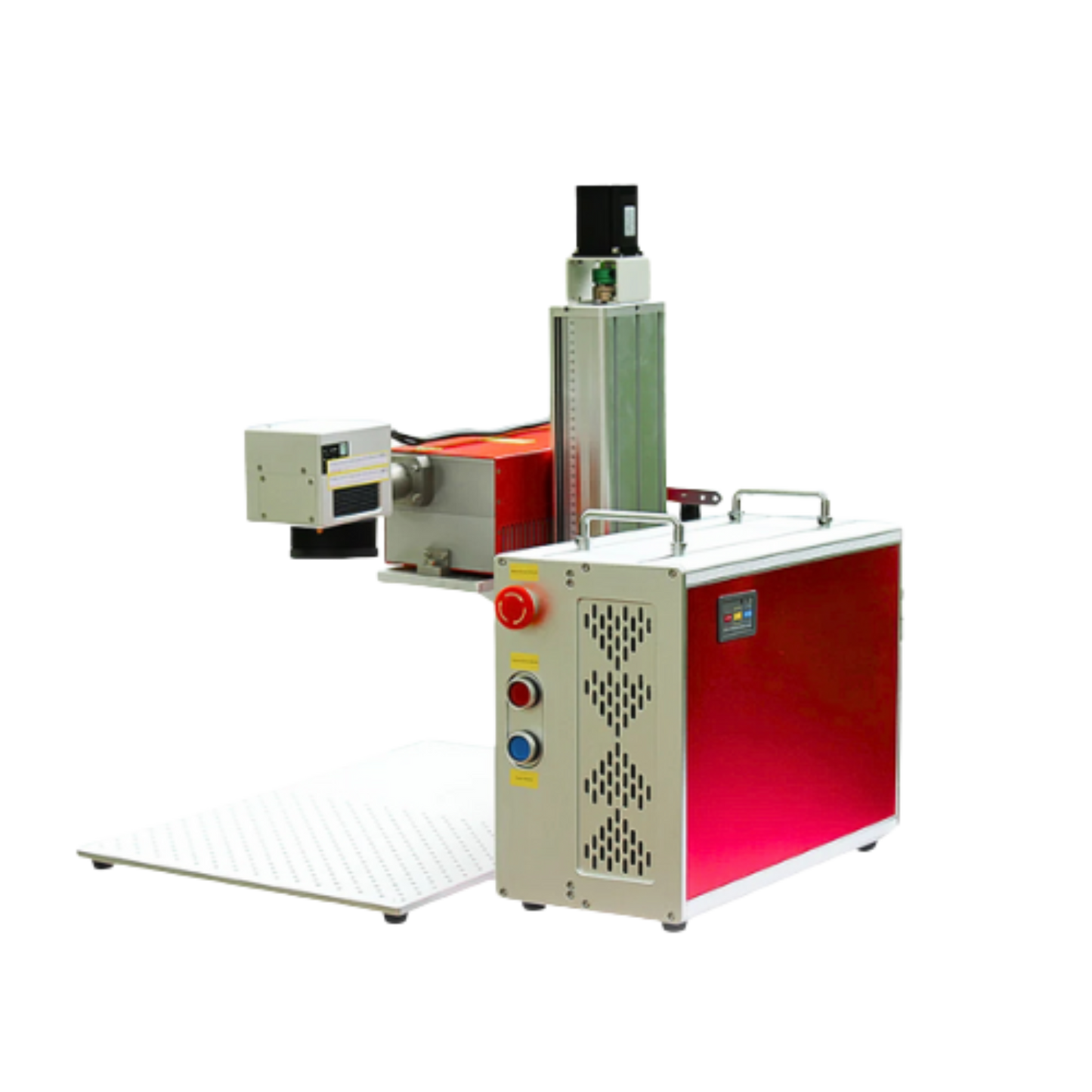

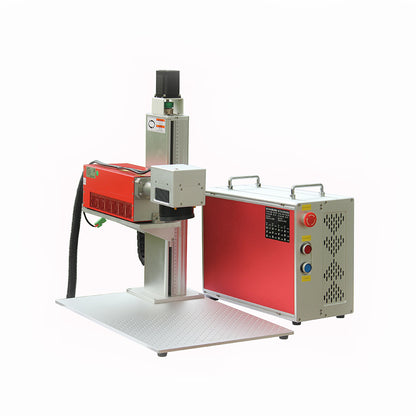

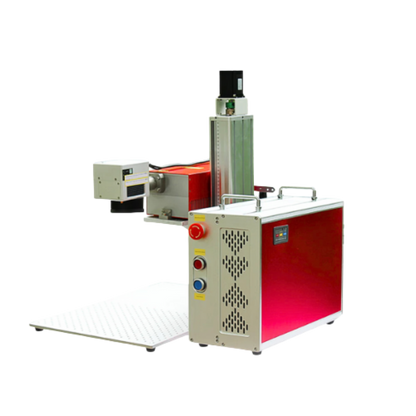

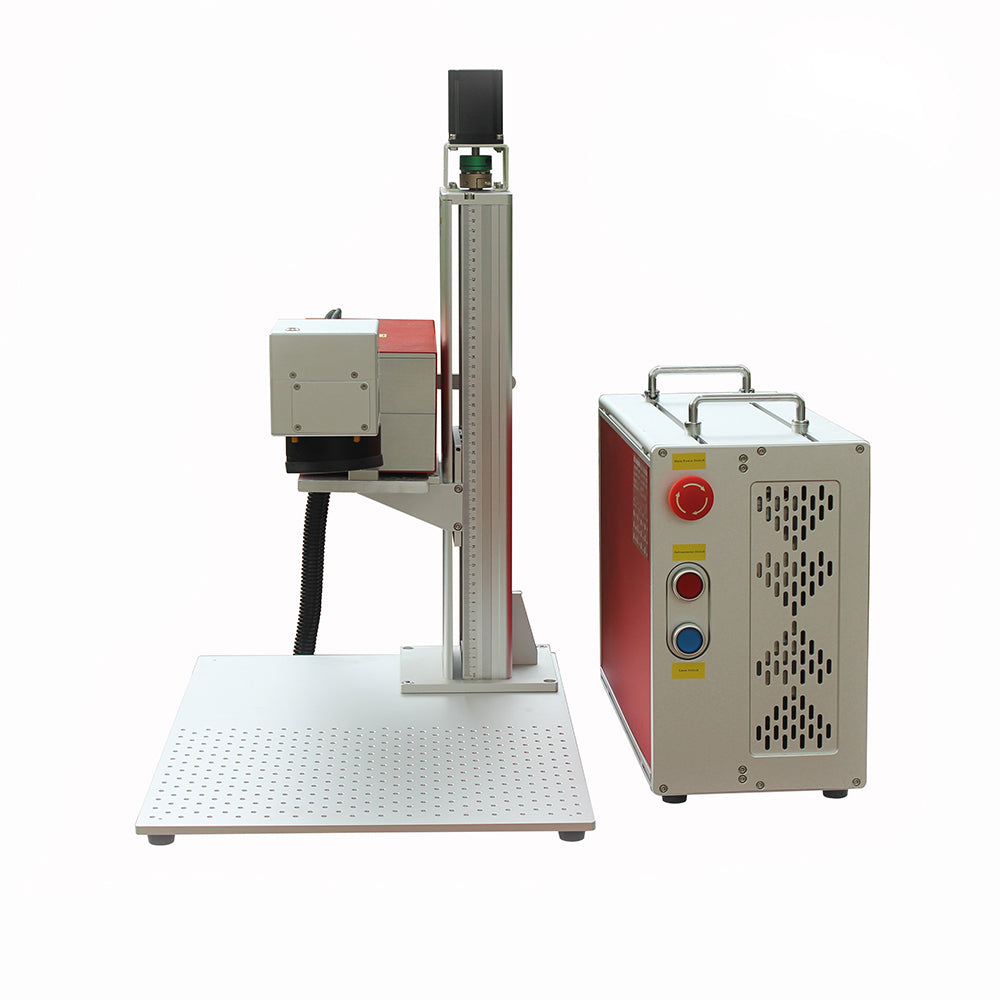

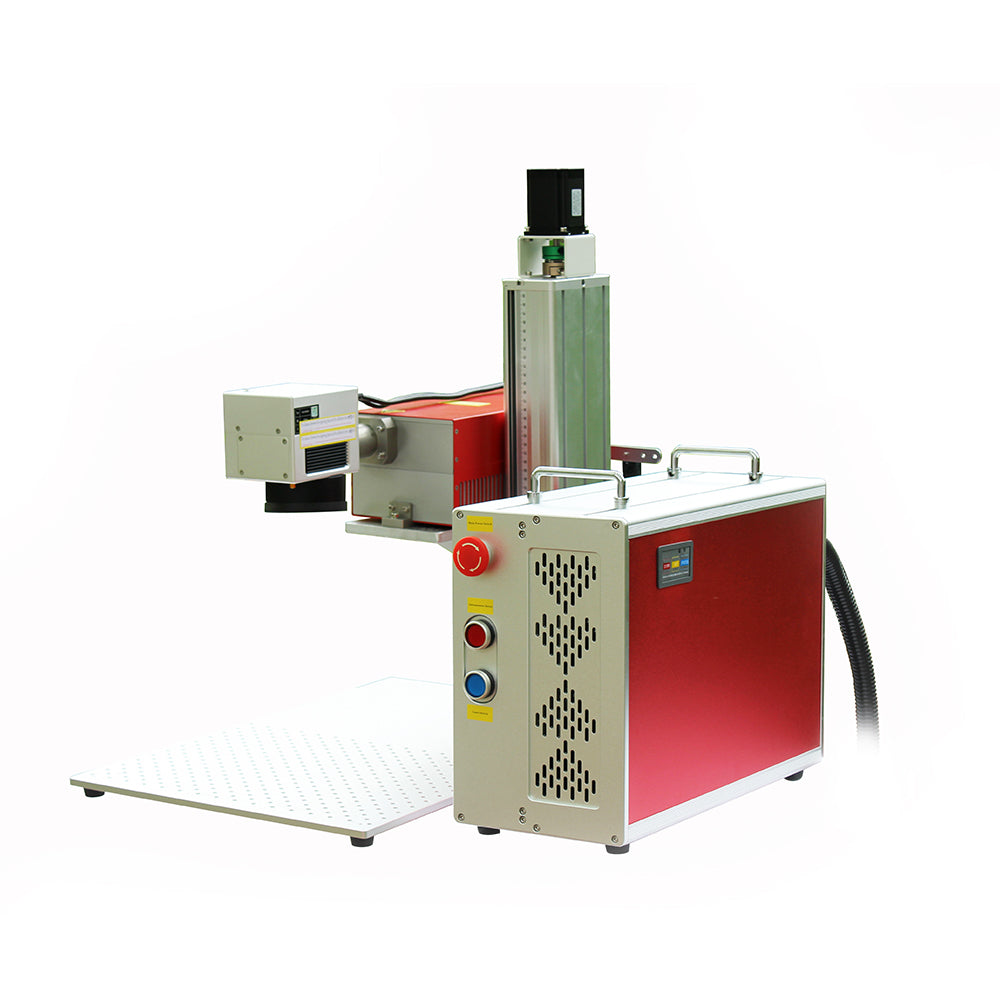

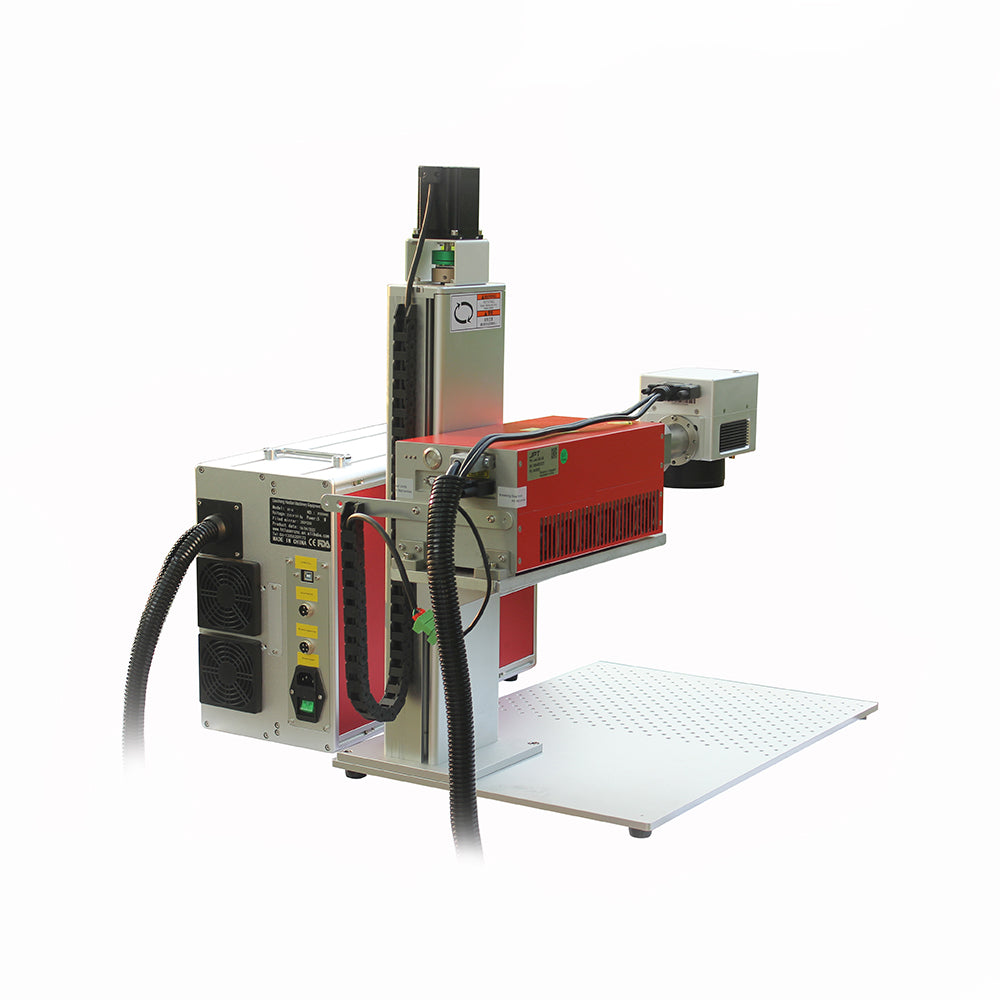

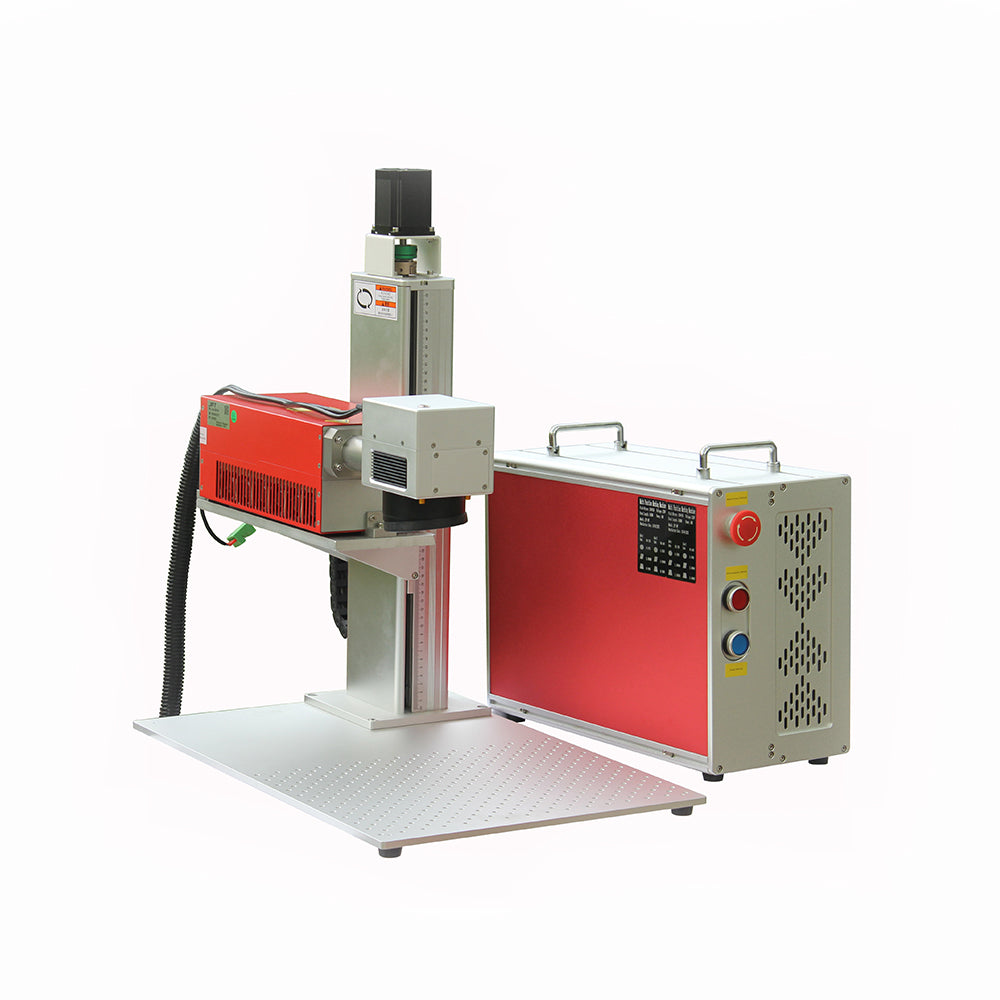

2D EZCAD2 UV Galvo
2D EZCAD2 UV Galvo
Couldn't load pickup availability
Warranty
Warranty
1.5 YEARS
Models List
Models List
- 5W Air Cooling
- 10W Water Cooling
Free Parts
Free Parts
- X1 USB cable
- X1 Power cable

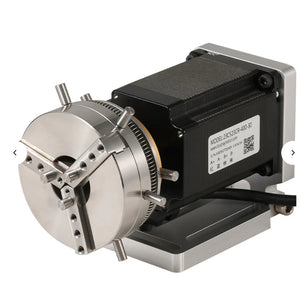

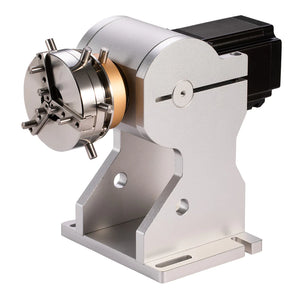

- X1 Rotary and tools
- X2pcs Position plate
- X10pcs Testing card
- X1 Foot Pedal
- X1 Wrech
- X1 Screws
- X1 Focus ruler

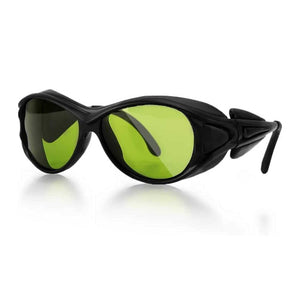

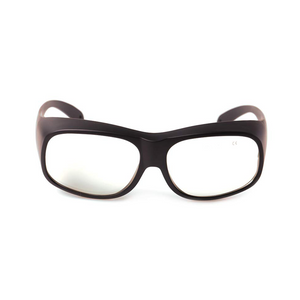

- X1 Quality safety glasses
- X1 Flash disk
Main Configuration
Main Configuration

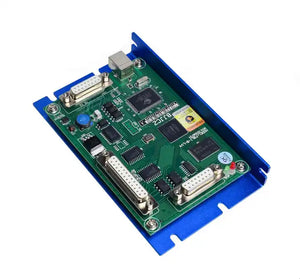

- EZCAD Controller& Software(original) LMCV4-DIGIT
- EZCAD2 software, Double Red Dot for Adjust the focus
- Heavy duty motorized Z tower (standard 500mm, 700mm is optional, US$130 higher)
- Working size: 110mmx110mm (max 300X300mm)
- Laser Power: 5W/10W
- Laser source: JPT
- High-quality scanning head SINO SG7110
Detailed Parameters:
Effective Working Area |
110mmx110mm (max 300X300mm) |
Laser Power |
5W/10W/15W |
Worktable |
Fixed high quality aluminum worktable |
Wave Length |
355nm |
Computer System |
WINDOWS 7/8/10/11 32/64bits, you can use Mac if you use Lightburn |
Minimum Character |
0.15mm |
Minimum Linear Width |
0.01mm |
Cooling way |
AIR Cooling for 5W and water cooling for 10W/15W |
Maxi Marking Speed |
5000mm/s |
Data Transfer: |
USB2.0 transmission |
Control System |
BJJCZ Controller |
Graphic Format Supported: |
DXF/PLT and some AI BMP, DST, DWG, LAS, DXP |
Compatiable Software |
EZCAD2 |
Total Power |
800W (AC220V 50Hz /AC110V 50Hz) |
Package Size |
78*64*54cm for machine(56KGS) |
Share it

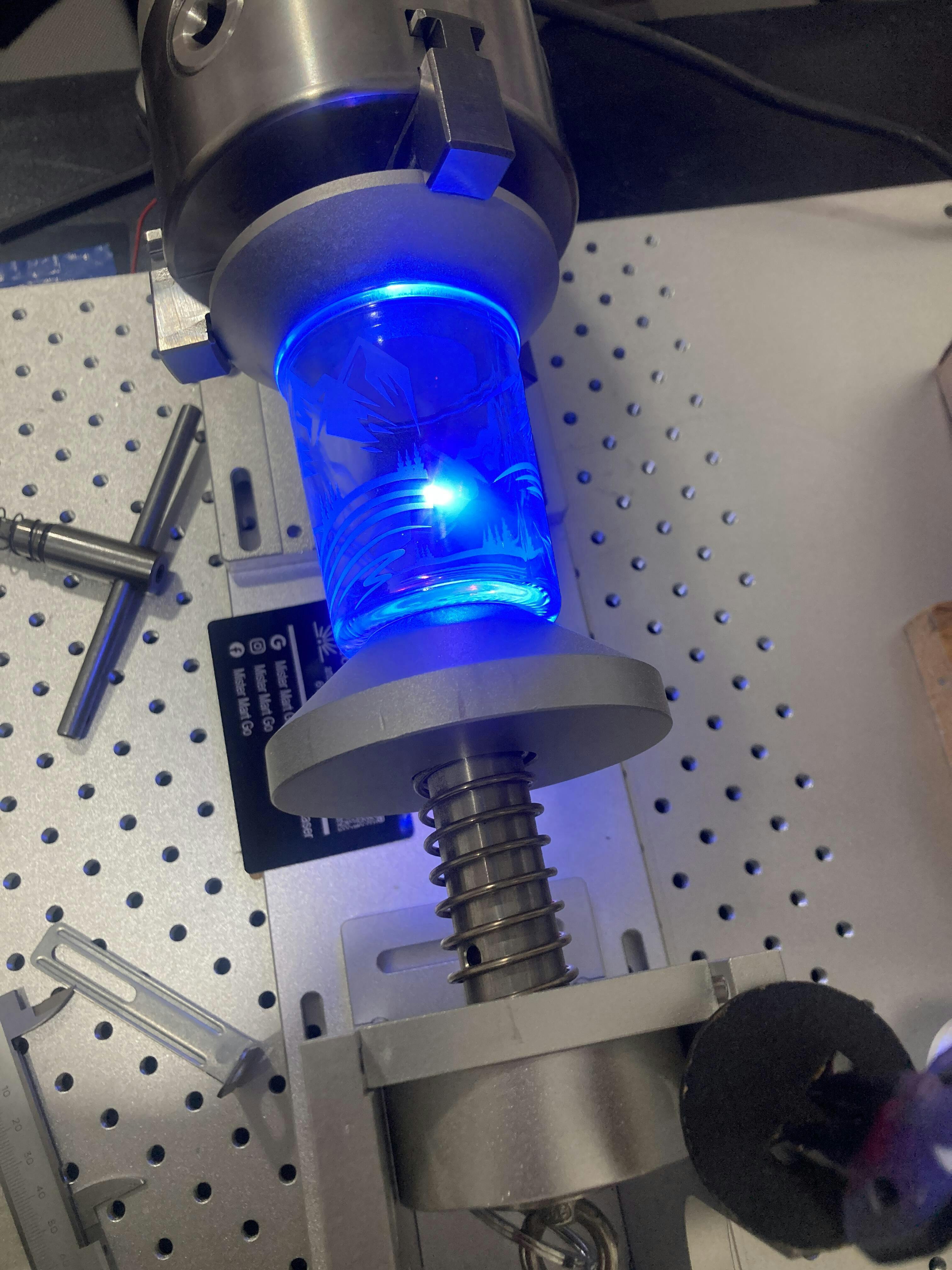

Esta es mi Segunda máquina haotian, uv5w mis expectativas superaron con creces, el trabajo es muy elegante y fino, cada día que trabajo con ella encuentro cosas que me dejan sorprendido … es un continuo aprendizaje, el equipo humano que hay detrás de la empresa es altamente cualificado y resuelven dudas y dan apoyo de inmediato, recomendado al 1000%

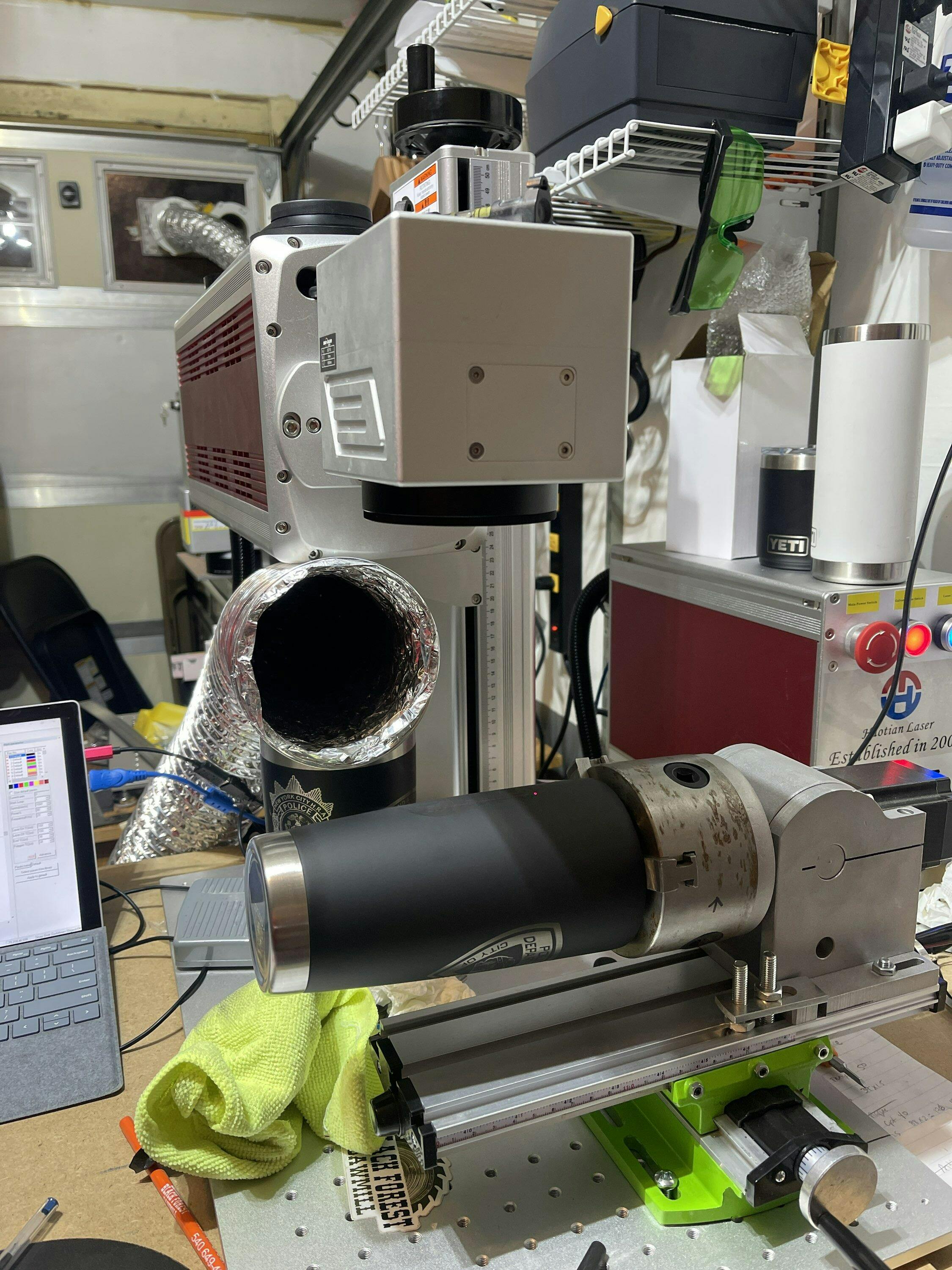

I have 5 galvo lasers from Haotian and they are all power house machines. UV, Fiber and Co2 galvos. Highly recommend.
These guys we absolutely great to work with. They were very responsive before, during and after delivery. Pascal provided pictures of my machine before delivery and upon delivery him and his team assisted with any questions I had. My next purchase will definitely be from Pascal!!

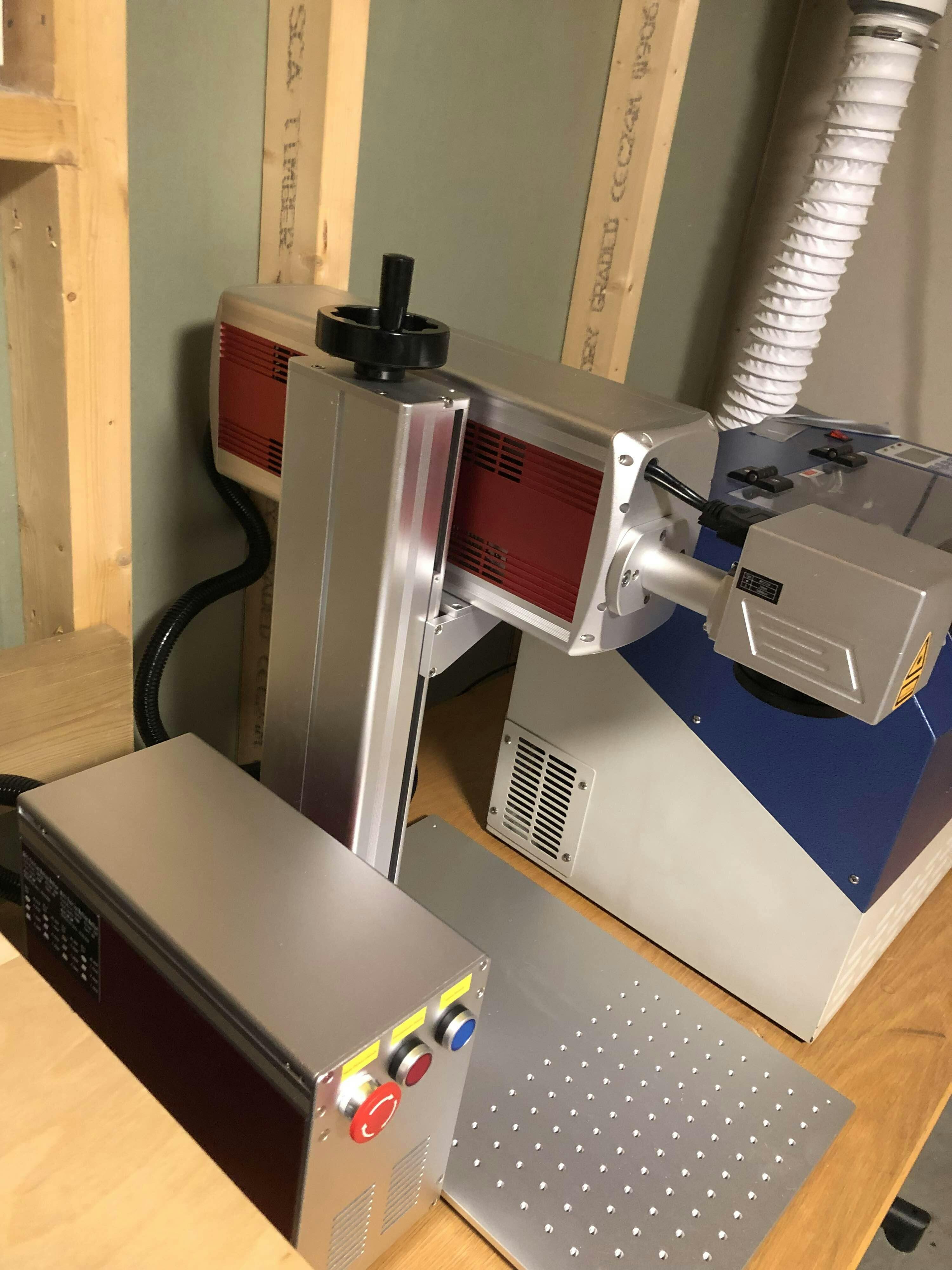

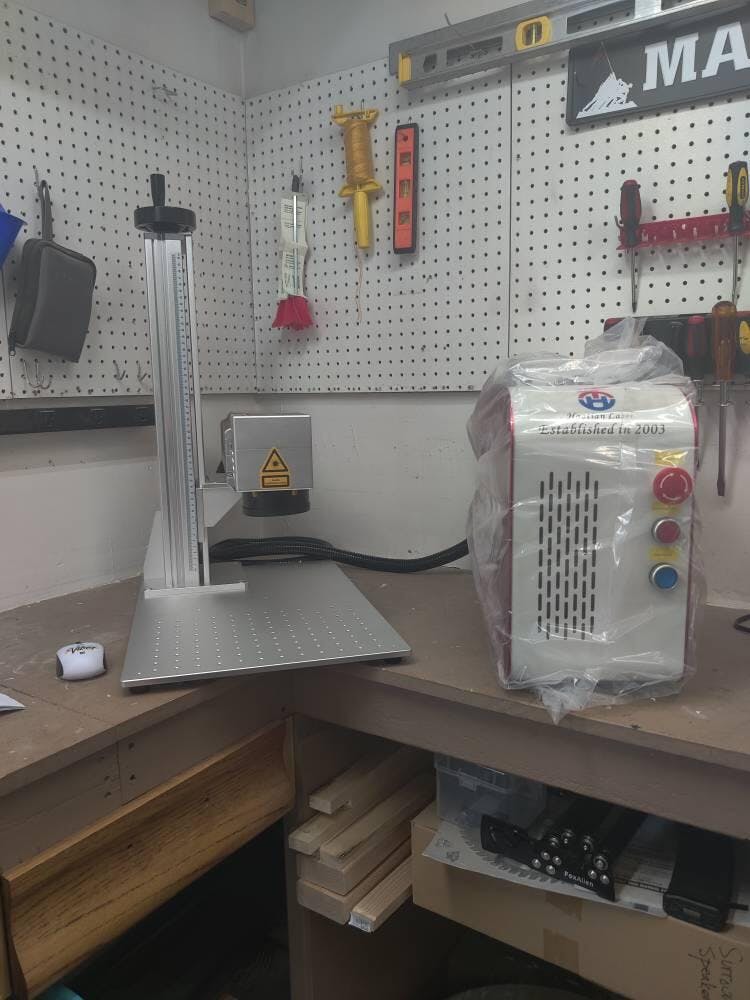

Well packed. It took me 15 mins to unpack to the machine was up and running. wow.. this is really fast engraving machine. My old co2 gantry will sure be collecting some dust 🤪 Thanks for the awesome product and service from you. Highly recommended to other buyers.
