30W JPT EM7 MOPA Fiber laser

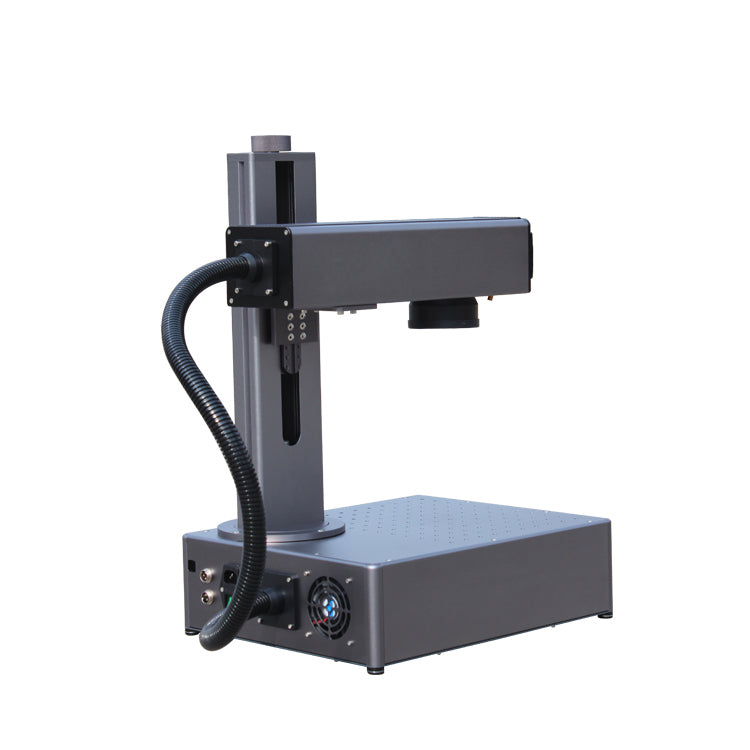

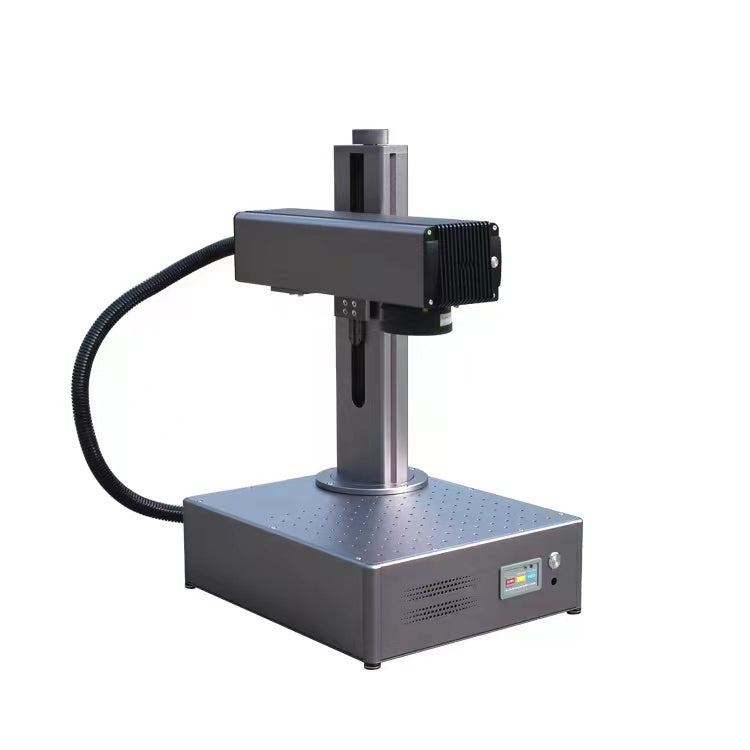

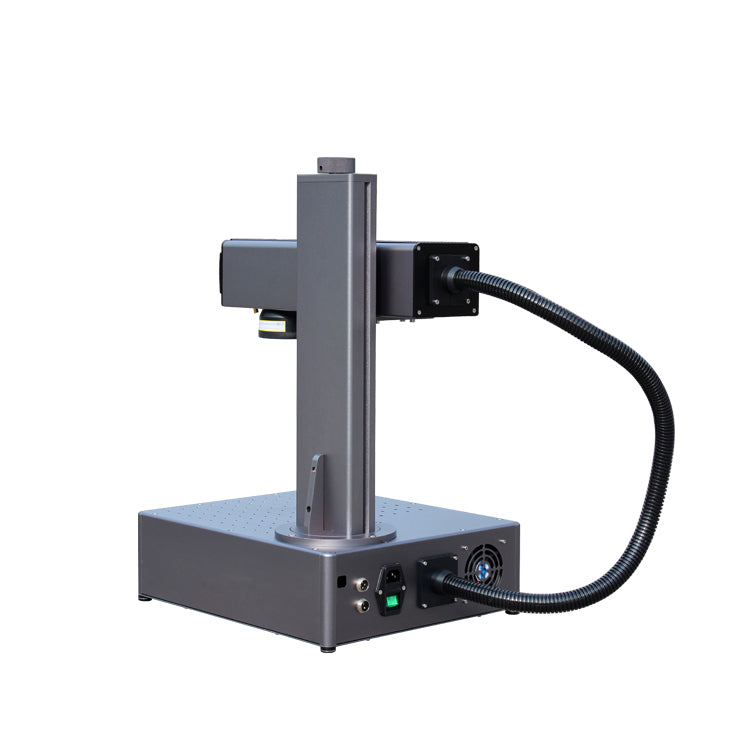

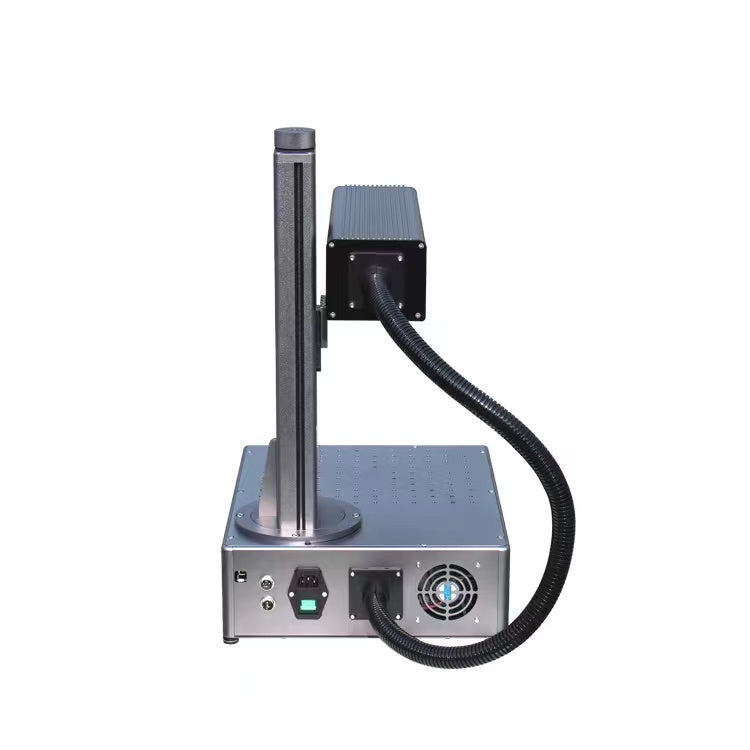

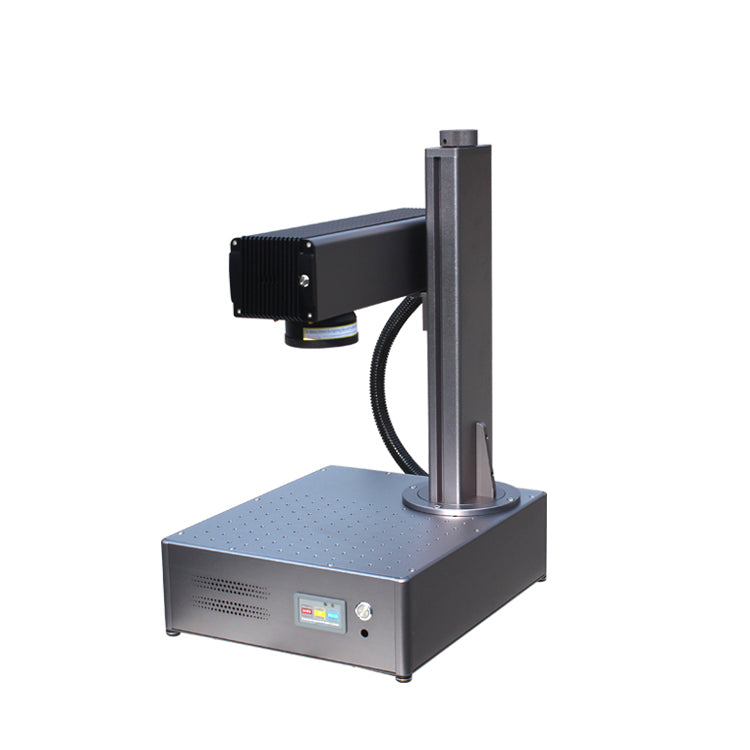

30W JPT EM7 MOPA Fiber laser

$3,800.00 USD
$3,800.00 USD
Sale Sold out
Model

Warranty

3 YEARS

Models List

  • 20W JPT
  • 30W JPT LP
  • 30W JPT EM7 Mopa
  • 50W JPT LP
  • 60W JPT EM7 Mopa
  • 80W JPT M7 Mopa
  • 20W Raycus
  • 30W Raycus

Free Parts

  • X1 USB cable
  • X1 Power cable
  • X1 Rotary and tools
  • X2pcs Position plate
  • X10pcs Testing card
  • X1 Foot Pedal
  • X1 Wrech
  • X1 Screws
  • X1 Focus ruler
  • X1 Extra lens
  • X1 Quality safety glasses
  • X1 Flash disk

Main Configuration

  • EZCAD Controller& Software(original)
  • Double Red Dot for Adjust the focus
  • Foot Switch, motorized Z
  • Working size: 150x150MM (max can be 300X300mm)
  • Laser Power: 20W/30/50/60/80W
  • Laser source: JPT
  • 100% aluminum machine cover
  • high quality scanning head and lens

Detailed Parameters:

Effective Working Area

 70/150

Laser Power

30w

Worktable

Fixed high quality aluminum worktable

Wave Length

1064nm

Laser Frequency

1-600KHz for LP source, and 1-4000KHZ for Mopa. 30-60KHZ for 20W Raycus source, and 40-60KHZ for 30W Raycus

Computer System

WINDOWS XP/Win7/8/10 32/64bits, you can use Mac if you use Lightburn software

Minimum Character

0.15mm

Minimum Linear Width

0.01mm

Cooling way

Air Cooling

Maxi Marking Speed

5000mm/s

Data Transfer:

USB2.0 transmission

Control System

BJJCZ

Graphic Format Supported:

AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Compatible Software

EZCAD2, Lightburn

Total Power

500W (AC220V 50Hz /AC110V 50Hz)
