Hao Tian Store

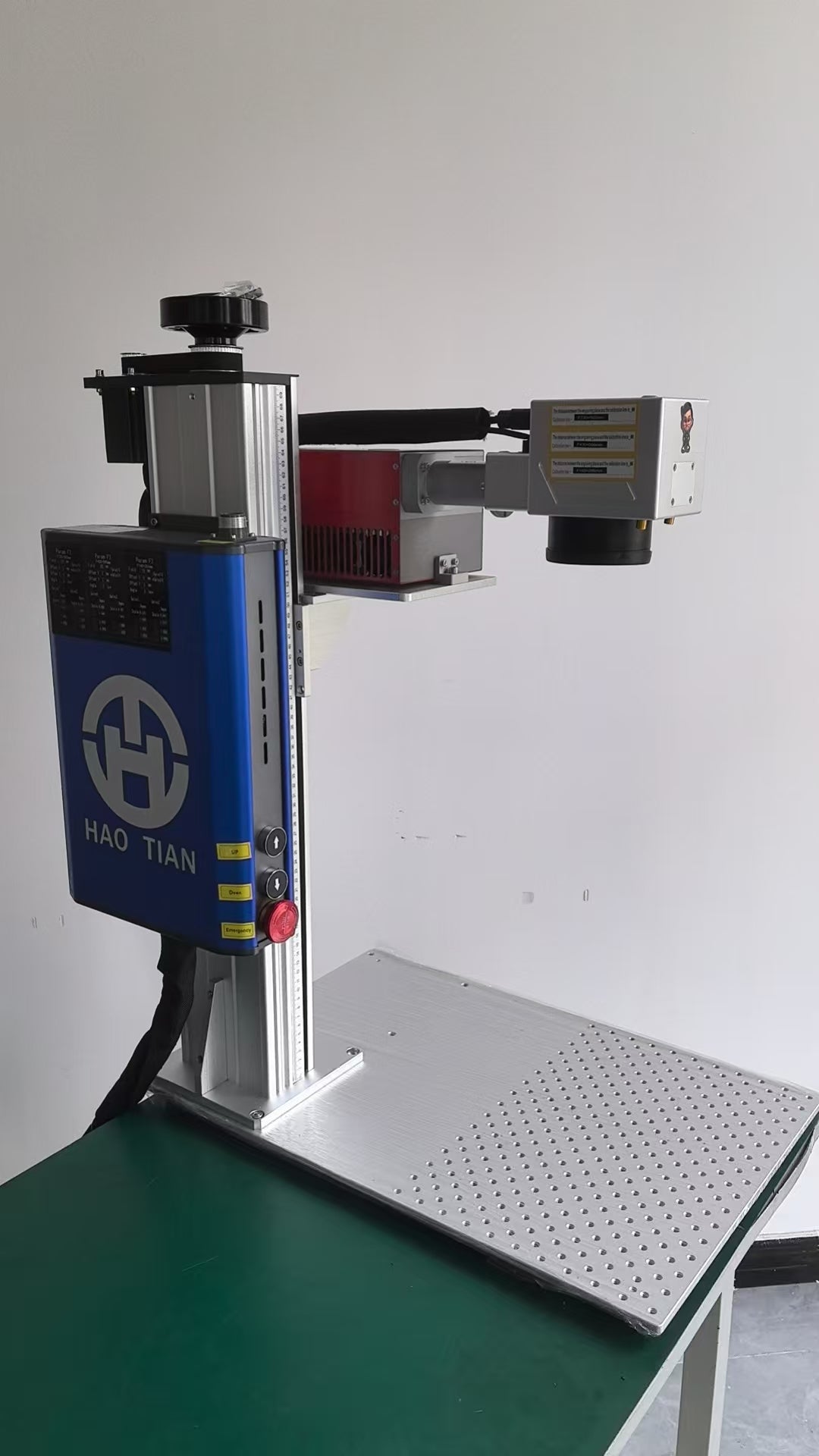

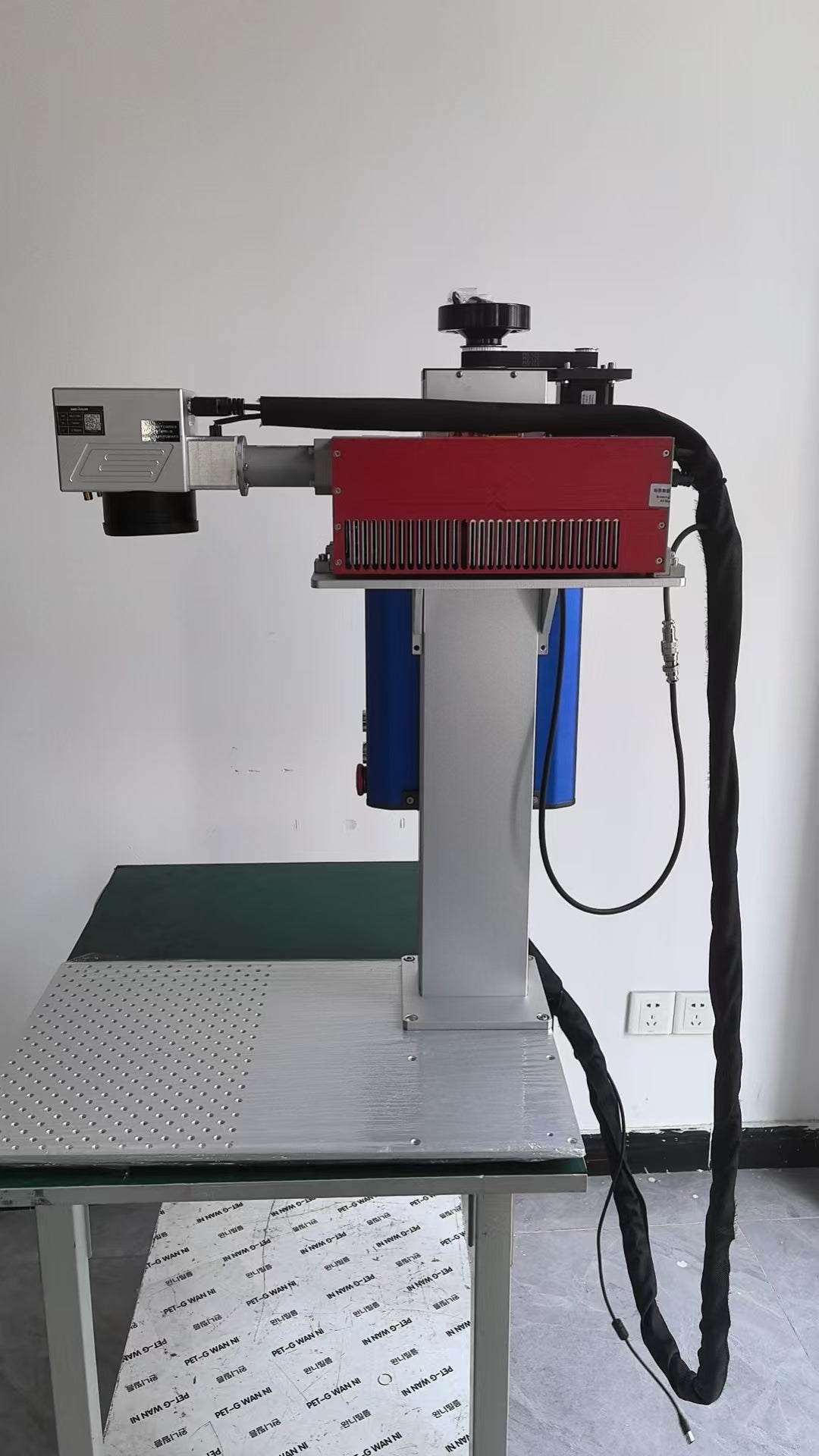

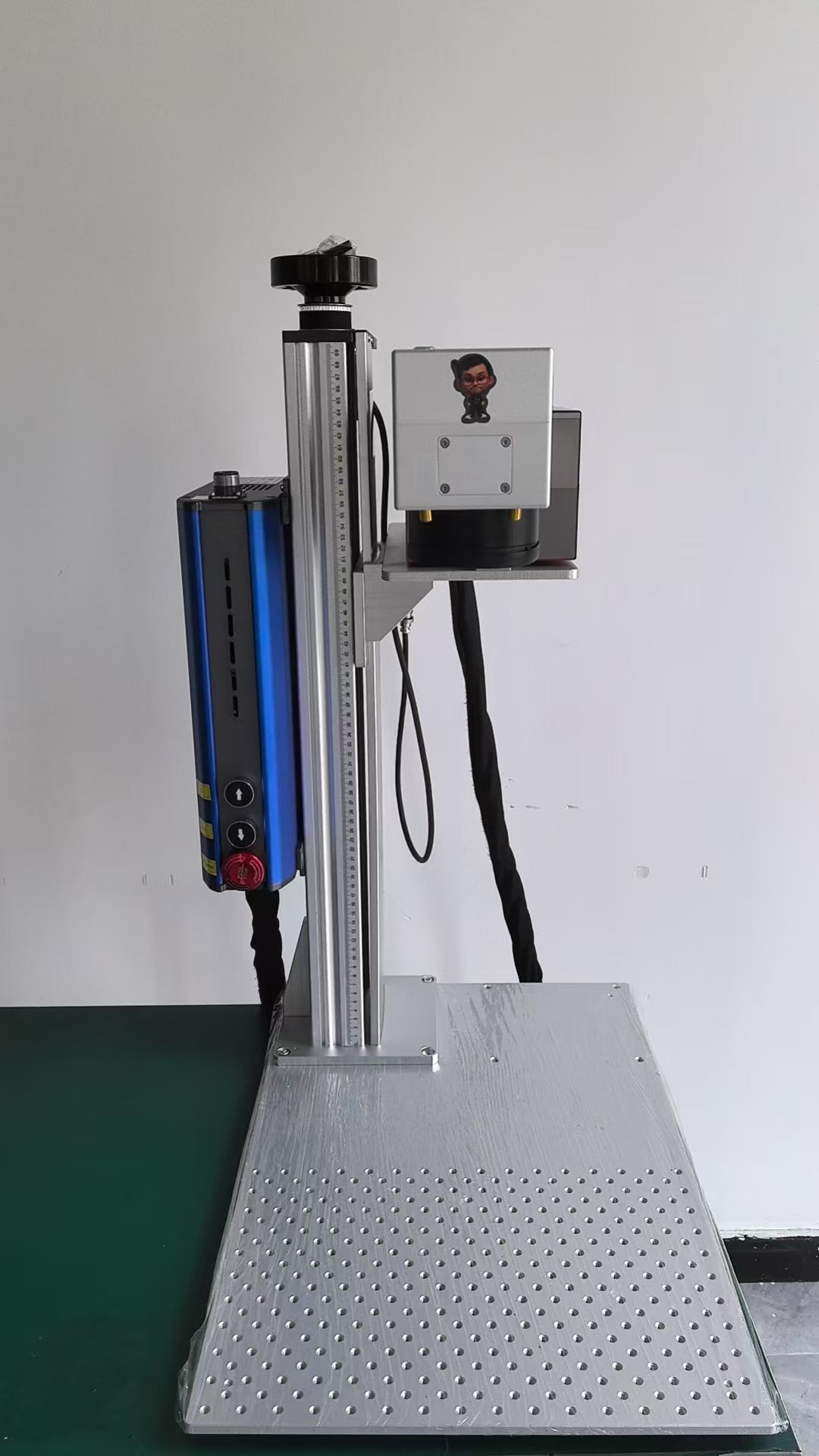

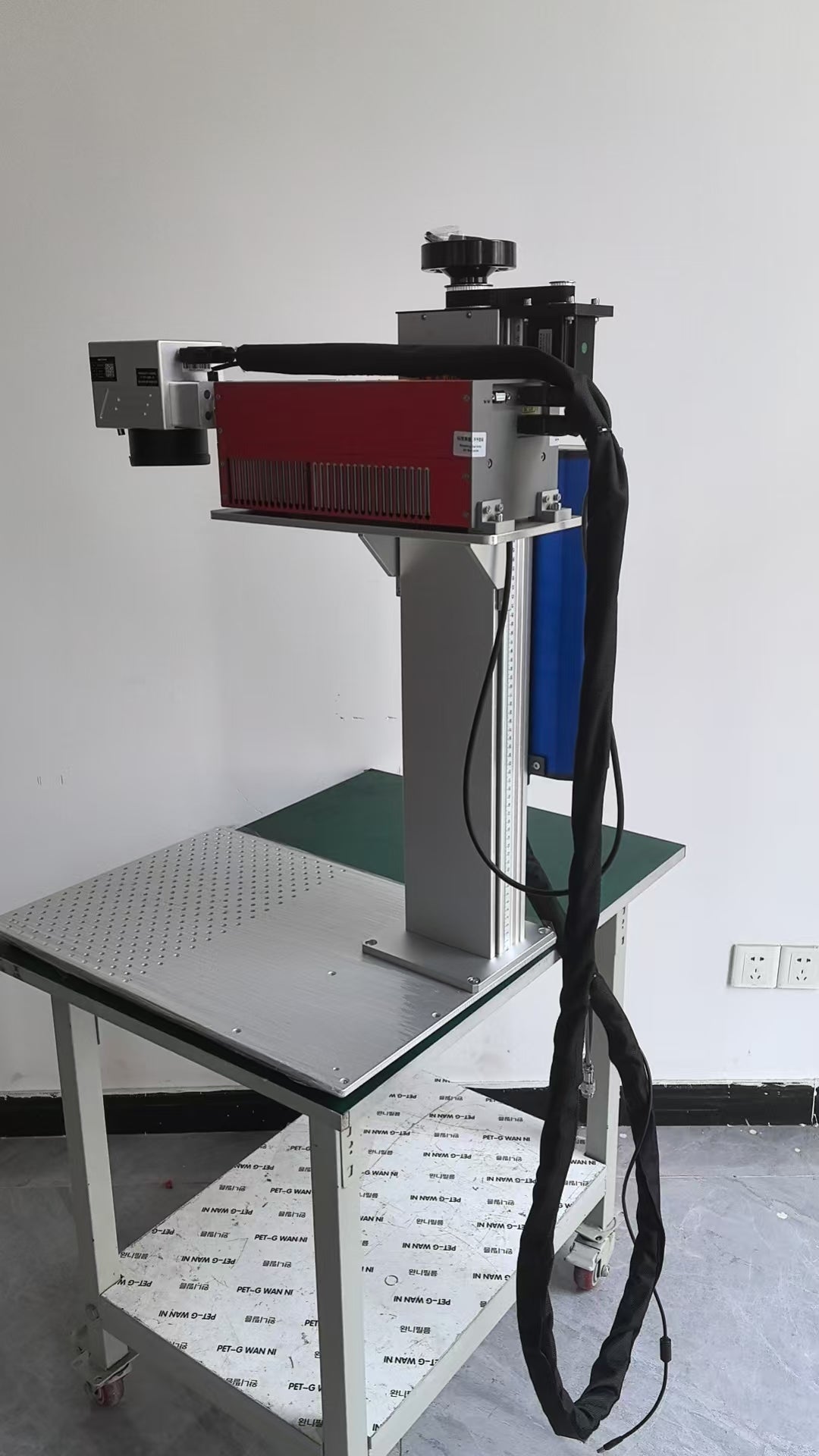

compact 10W JPT 10E UV laser with taller tower and XY table
compact 10W JPT 10E UV laser with taller tower and XY table
No reviews
Regular price
$9,100.00 USD
Regular price
Sale price
$9,100.00 USD
Unit price
/
per
Couldn't load pickup availability
Warranty
Warranty
1.5 YEARS
Models List
Models List
- 10W Water Cooling
Free Parts
Free Parts
- X1 USB cable
- X1 Power cable
- X1 Rotary and tools
- X2pcs Position plate
- X10pcs Testing card
- X1 Foot Pedal
- X1 Wrech
- X1 Screws
- X1 Focus ruler
- X1 Quality safety glasses
- X1 Flash disk
Main Configuration
Main Configuration
- EZCAD Controller& Software(original) LMCV4-DIGIT
- EZCAD2 software, Double Red Dot for Adjust the focus
- Heavy duty motorized Z tower (standard 500mm, 700mm is optional, US$130 higher)
- Working size: 110mmx110mm (max 300X300mm)
- Laser Power: 5W/10W
- Laser source: JPT
- High-quality scanning head SINO SG7110
Detailed Parameters:
|
Effective Working Area |
110mmx110mm (max 300X300mm) |
|
Laser Power |
10W |
|
Worktable |
Fixed high quality aluminum worktable |
|
Wave Length |
355nm |
|
Computer System |
WINDOWS 7/8/10/11 32/64bits, you can use Mac if you use Lightburn |
|
Minimum Character |
0.15mm |
|
Minimum Linear Width |
0.01mm |
|
Cooling way |
AIR Cooling for 5W and water cooling for 10W/15W |
|
Maxi Marking Speed |
5000mm/s |
|
Data Transfer: |
USB2.0 transmission |
|
Control System |
BJJCZ Controller |
|
Graphic Format Supported: |
DXF/PLT and some AI BMP, DST, DWG, LAS, DXP |
|
Compatiable Software |
EZCAD2 |
|
Total Power |
800W (AC220V 50Hz /AC110V 50Hz) |
|
Package Size |
78*64*54cm for machine(56KGS) |
